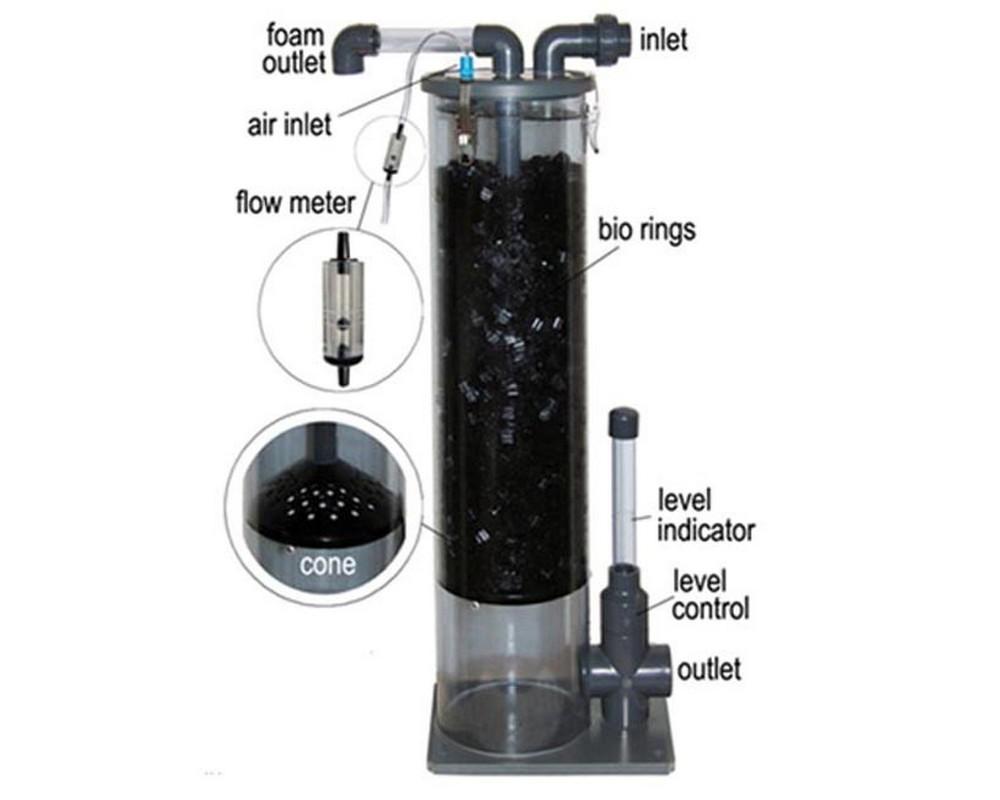

TORNADO 2 Protein Skimmer (Low pressure)
New improved version of the popular Tornado protein skimmer. No more pressure loss on the inlet due to the
absence of a venturi. Water goes straight into the filter. Air is blown into the 4mm air inlet through a supplied
flowmeter to ensure a continuous flow of 0,5 l/m (30 l/h). This pressure ensures the separation of the produced foam
through the foam outlet pipe.
The protein skimmer is a combination of three different filter systems. The filter operates biological, mechanical and chemical. The
principle operates as follows: The surface of an air bubble attracts dissolved substances out of the water.
Because of the adhesion of the bubbles these substances, like chemicals, wasteparticles, colourants and algae, are concentrated. By
means of an air pump, air is mixed with water. By forcing this mixture through the bio rings to a lower part, there is a long contact
between air and water. This changes the surface tension of the water continuously and creates a thick foam.
This foam will be separated from the cleared water by a perforated cone and exits
through the foam outlet.
Dissolved substances like; phosphates, ammonia, humus acids, colourants,
proteins and a number of heavy metals, are filtered out of the water and
separated together with the foam. The extraction of dissolved substances is not
possible with normal filters and can only be done if chemicals are added.
The filter has various advantages:
- Stabilizes pH.
- Removes colourants.
- Increases dissolved oxygen.
- Not dependant on bacteria, works as soon as the pump is running.
Total height 74cm, Ø16 cm. Water inlet Ø 25 mm, water outlet
Ø40 mm, foam outlet Ø25 mm. Pump capacity max. 5m³/h.
