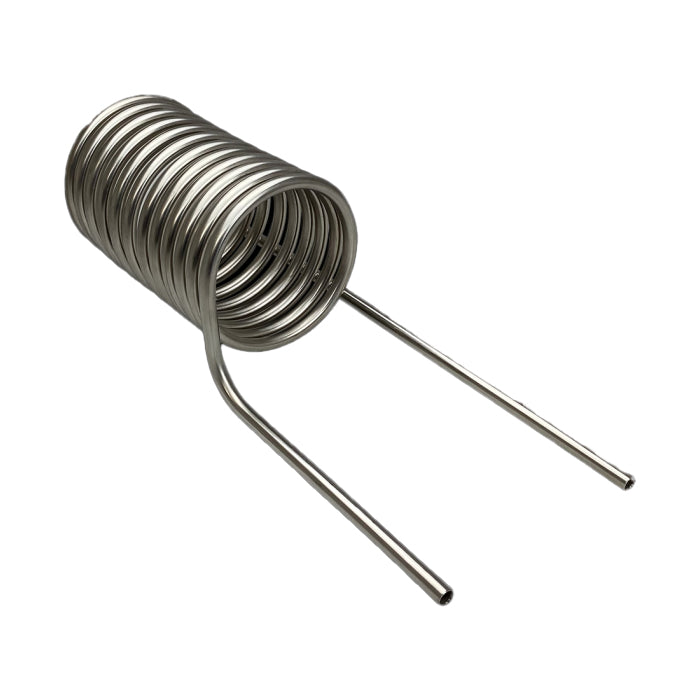

Small Stainless Steel Submersible Heat Exchanger 15kW

  • Sale
  • £125.89
  • Regular price £127.99
Tax included.

As used for many years in Japan at some fish farmers indoor facilities.

These 316 stainless steel heat exchangers are designed to be fully submersed in the pond or pool. Hot water (from boiler) is pumped through the stainless steel core and the heat slowly transfers into the pond/pool water.

Technical Data

Weight (kg) 0.96
Country of manufacture Netherlands
Maximum pressure (bar) 3
Δt (°C) 50
Total tube length (m) 6
Wall thickness (mm) 1
Outlet (mm) 3/4"
Dimensions (mm) 320 x 120 (lxØ)
Material aisi 304 stainless steel
