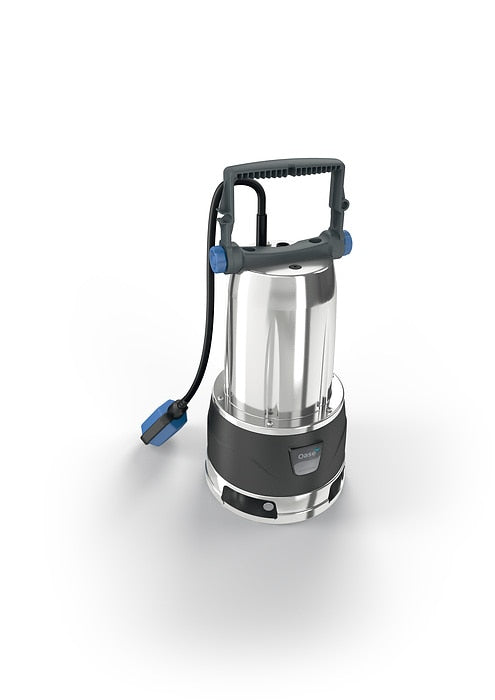

The ProMax MudDrain 7000 submersible waste water pump reliably pumps contaminated water out of construction pits, shafts or basins and is designed as a valuable helper for precisely these challenging tasks. It is powerful and robust, ready for immediate use at any time and conveys contaminated water with dirt particles up to a diameter of 30mm and a maximum flow rate of 7500 l / h. The ProMax MudDrain 7000 offers an ideal flow rate with low resistance thanks to the rear pressure port 1 1/2 ". The position of the pressure port along the central axis ensures low start-up impulses and makes the ProMax MudDrain 7000 particularly stable. It is easy to connect and has a 90 degree bend and stepped nozzle supplied.

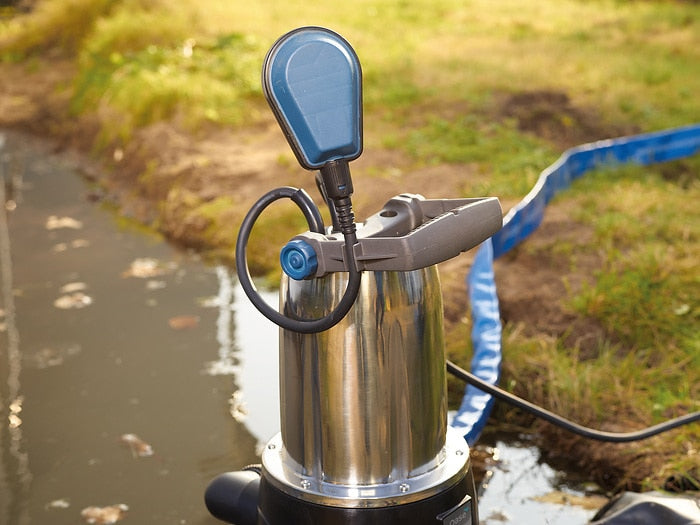

- ROBUST & RELIABLE: Automatically switches on and off by means of a float switch
- IMMEDIATELY READY TO USE: Includes 90° elbow and stepped sleeve
- HIGH STABILITY: Low start-up impulse thanks to the pressure nozzle positioned along the centre axis
- WELL-PROTECTED: Ceramic-coated stainless steel shaft

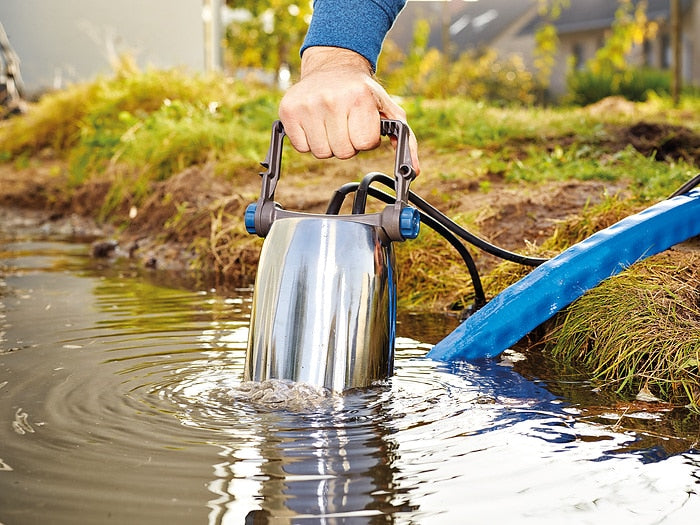

- HANDY: Adjustable handle
- POWERFUL: Generously dimensioned motors
- SOLID: High-quality and robust stainless steel housing
- OPTIMAL PARTICLE THROUGHPUT: 1½" rear pressure nozzle for optimal flow rate and low resistance
- Robust and reliable: Automatic pump switch-on and switch-off through the float switch

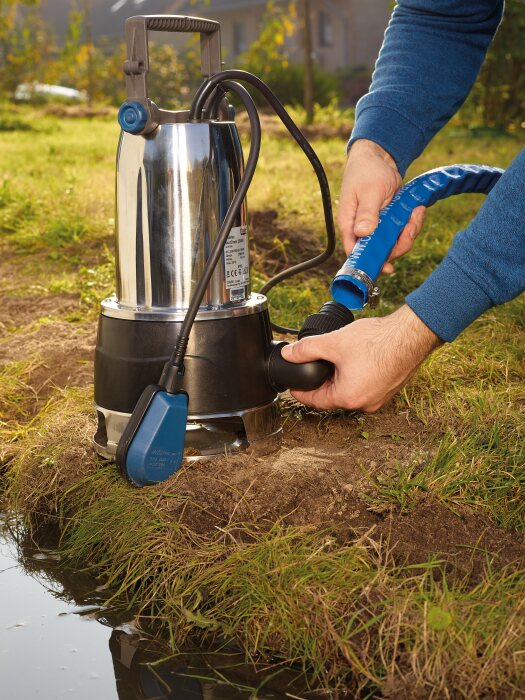

- Easy to connect: Incl. 90° elbow and stepped adapter
- Versatile: Adjustable handle
- Optimal particle throughput: Rear 1½" pressure port for ideal flow-through and minimal resistance
- Well-protected: Ceramic-coated stainless steel shaft
- Secure stance: Minimal start-up pulses thanks to pressure port positioned along the central axis
- Powerful: Generously-dimensioned motors
- Solid: High-quality and robust stainless steel housing
Technical Data
Flow rate – Q max. | l/h | 7500 |
Delivery head – H max. | m | 5.00 |
Pressure – max. | bar | 0.5 |
Power consumption | W | 325 |
Power consumption | hp | 0.4 |
Rated voltage | 230 V / 50 Hz | |
Limited Warranty | Years | 2 |
Limited Warranty | Years | 2 + 1 |
Immersion depth max. | m | 7.00 |
Grain size – max. | mm | 30 |
Automatic function | Float switch | |
Outlet size | 1 ½" | |
Power cable length | m | 10.00 |
Protection class | IP X8 | |
Net weight | kg | 5.60 |
Dimensions (L x W x H) | mm | 193 x 247 x 395 |
