Oase ProMax MudDrain 20000

PP3920
  • Sale
  • Regular price $549.00

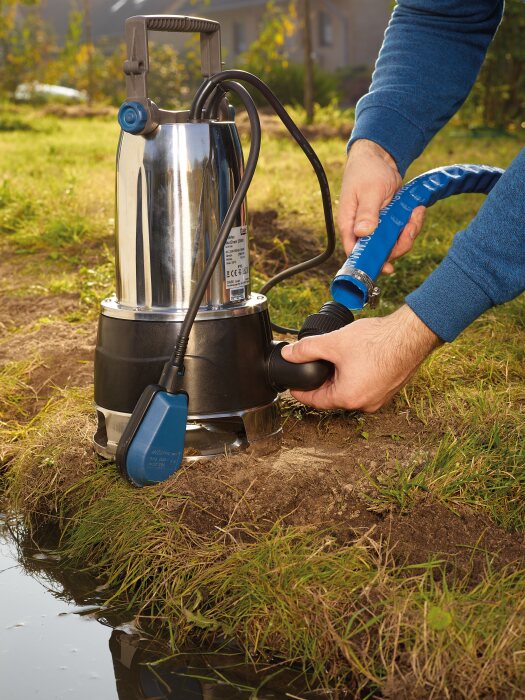

The ProMax MudDrain 20000 submersible waste water pump reliably pumps contaminated water out of construction pits, shafts or basins and is designed as a valuable helper for precisely these challenging tasks. It is powerful and robust, ready for immediate use at any time and conveys contaminated water with dirt particles up to a diameter of 35mm and a maximum flow rate of 20,000 l / h. The ProMax MudDrain 20000 offers an ideal flow rate with low resistance thanks to the back pressure port 1 1/2 ". The robust materials and the stainless steel base make the ProMax MudDrain 20000 particularly stable. It is easy to connect and is supplied with a 90 degree bend and step nozzle. The float switch offers automatic switching on and off of the pump as a robust and reliable solution.

  • Robust and reliable: Automatic pump switch-on and switch-off through the float switch
  • "A cool head" :: Optimal heat dissipation from the motor thanks to water cooling - ideal for a long pump life
  • Solid: High-quality and robust stainless steel housing
  • Versatile: adjustable handle
  • For coarse debris: Pumps debris particles up to 35 mm in diameter
  • Secure stance: Robust stainless steel base
  • Well-protected: Ceramic-coated stainless steel shaft
  • Optimal particle displacement: Pressure duct is positioned tangentially, appropriate for the water flow
  • Powerful: Strong displacement
  • Custom adjustment: Easy clip function allowing different float positions

Technical Data

Flow rate - Q max. l / h 20000
Delivery head - H max. m 10.00
Pressure - max. bar 1.0
Power consumption W. 950
Power consumption hp 1.3
Rated voltage 230 V / 50 Hz
Limited warranty Years 2
Limited warranty Years 2 + 1
Immersion depth max. m 7:00
Grain size - max. mm 35
Automatic function Float switch
Outlet size 1 ½ "
Power cable length m 10.00
Protection class IP X8
Net weight kg 8.10
Dimensions (L x W x H) mm 200 x 254 x 440
Item no. (GB version) 57769
