Oase ProMax MudDrain 14000

  • Sale
  • Regular price £353.28
Tax included.

The ProMax MudDrain 14000 submersible waste water pump reliably pumps contaminated water out of construction pits, shafts or basins and is designed as a valuable helper precisely for these challenging tasks. It is powerful and robust, ready for immediate use at any time and conveys contaminated water with dirt particles up to a diameter of 30mm and a maximum flow rate of 14500 l / h. The ProMax MudDrain 14000 offers an ideal flow rate with low resistance thanks to the back pressure port 1 1/2 ". The position of the pressure port along the central axis ensures low start-up impulses and makes the ProMax MudDrain 14000 particularly stable. It is easy to connect and has a 90 degree bend and stepped nozzle supplied.

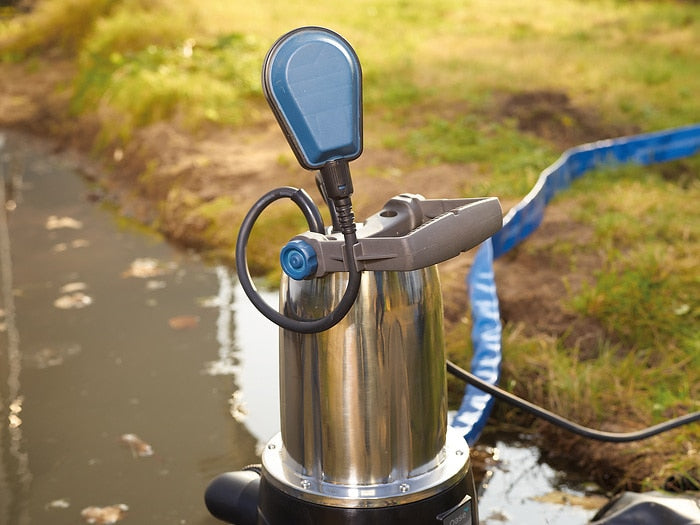

  • Robust and reliable: Automatic pump switch-on and switch-off through the float switch
  • Easy to connect: Incl. 90° elbow and stepped adapter
  • Versatile: Adjustable handle
  • Optimal particle throughput: Rear 1½" pressure port for ideal flow-through and minimal resistance
  • Well-protected: Ceramic-coated stainless steel shaft
  • Secure stance: Minimal start-up pulses thanks to pressure port positioned along the central axis
  • Powerful: Generously-dimensioned motors
  • Solid: High-quality and robust stainless steel housing

Technical Data

Flow rate – Q max. l/h 14500
Delivery head – H max. m 11.00
Pressure – max. bar 1.1
Power consumption W 950
Power consumption hp 1.3
Rated voltage 230 V / 50 Hz
Limited Warranty Years 2
Limited Warranty Years 2 + 1
Immersion depth max. m 7.00
Grain size – max. mm 30
Automatic function Float switch
Outlet size 1 ½"
Power cable length m 10.00
Protection class IP X8
Net weight kg 8.20
Dimensions (L x W x H) mm 193 x 247 x 422
