Oase

Oase ProMax MudDrain 11000

PP3918
  • Sale
  • Regular price £290.58
Tax included.

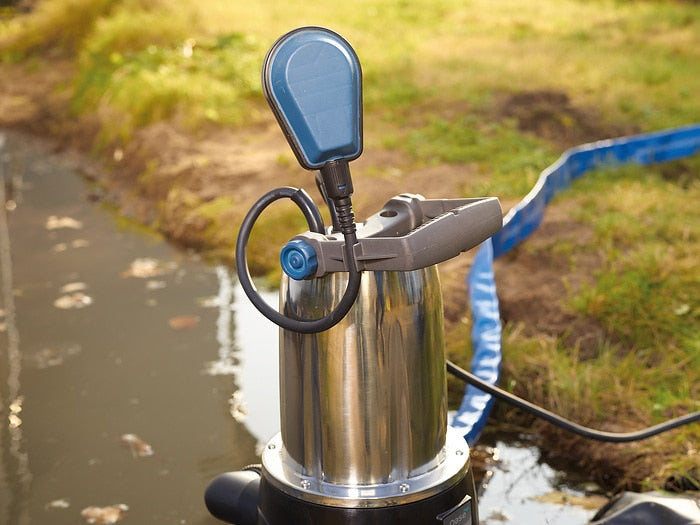

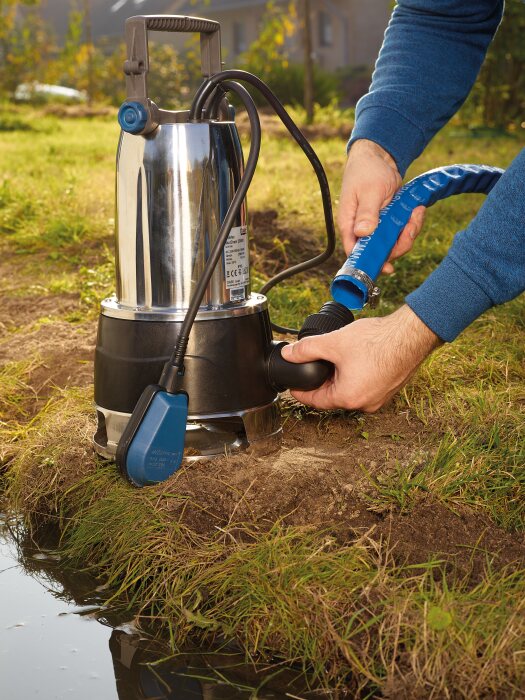

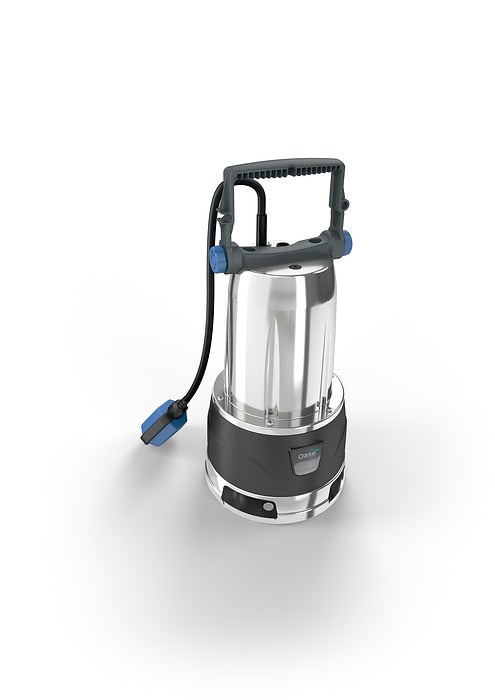

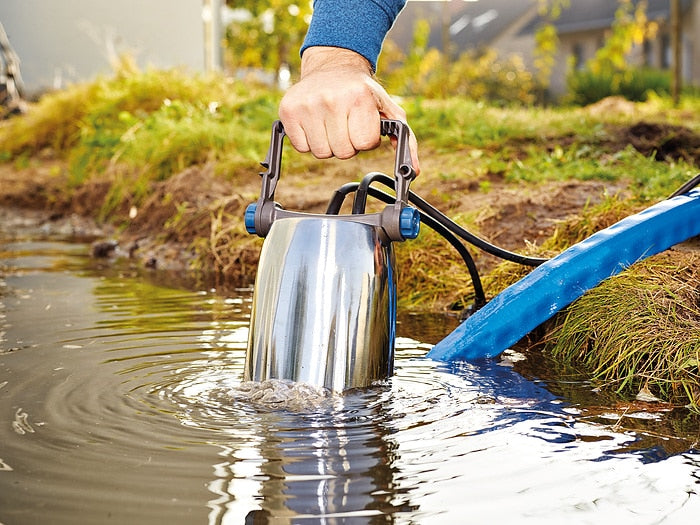

The ProMax MudDrain 11000 submersible waste water pump reliably pumps contaminated water out of construction pits, shafts or basins and is designed as a valuable helper for precisely these challenging tasks. It is powerful and robust, ready for immediate use at any time and conveys contaminated water with dirt particles up to a diameter of 30mm and a maximum flow rate of 11500 l / h. The ProMax MudDrain 11000 offers an ideal flow rate with low resistance thanks to the back pressure connection 1 1/2 ". The position of the pressure connection along the central axis ensures low starting impulses and makes the ProMax MudDrain 11000 particularly stable. It is easy to connect and has a 90 degree bend and stepped nozzle supplied.

  • Robust and reliable: Automatic pump switch-on and switch-off through the float switch
  • Easy to connect: Incl. 90 ° elbow and stepped adapter
  • Versatile: adjustable handle
  • Optimal particle throughput: Rear 1½ "pressure port for ideal flow-through and minimal resistance
  • Well-protected: Ceramic-coated stainless steel shaft
  • Secure stance: Minimal start-up pulses thanks to pressure port positioned along the central axis
  • Powerful: Generously-dimensioned motors
  • Solid: High-quality and robust stainless steel housing

 Technical Data

Flow rate - Q max. l / h 11500
Delivery head - H max. m 7:00
Pressure - max. bar 0.7
Power consumption W. 625
Power consumption hp 0.8
Rated voltage 230 V / 50 Hz
Limited warranty Years 2
Limited warranty Years 2 + 1
Immersion depth max. m 7:00
Grain size - max. mm 30th
Automatic function Float switch
Outlet size 1 ½ "
Power cable length m 10.00
Protection class IP X8
Net weight kg 6.80
Dimensions (L x W x H) mm 193 x 247 x 422
