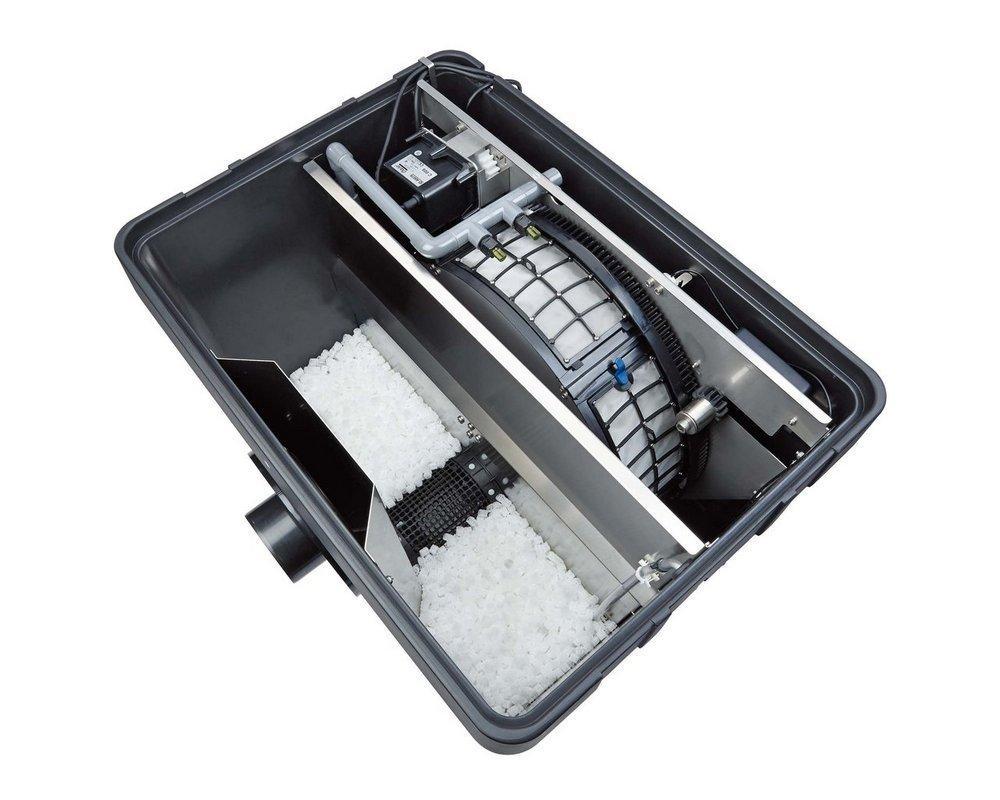

Oase Proficlear Premium Compact-M (Pumped)
Oase Proficlear Premium Compact-M (Pumped)
SKU:FS1982
Regular price
£2,999.99 GBP
Regular price
Sale price
£2,999.99 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability
- Suitable for ponds up to 80.0 m³
- Conveniently control all settings via an app with the Easy Garden Control System (EGC); existing systems can be upgraded using the separately available upgrade kit
- Inexpensive alternative for smaller ponds, particularly koi ponds
- The automatic coarse debris extraction easily flushes the contamination out of the filter, thanks to drum filter technology
- Available in the pump-fed principle and in the gravity-fed principle
- Conveniently control all settings via an app, through via the Easy Garden Control System (EGC)
- With the Moving Bed System for optimal water movement and water cleaning
- High separating capacity through deep-bed filtration of up to 60 microns
- Hel-X 13 filter medium with significantly enlarged surface area for effective decomposition of nutrients and pollutants
- Innovative and reliable product »made in Germany« (except pressure pump)
- The filter is flushed only by cleaned pond water. Therefore a fresh water connection is not required
- Particularly quiet operation thanks to extensive noise insulation
- Individually removable sieve elements (no tools required) and free-wheel function
- Pollutant rakes on the sieves for reliable removal of string algae and other larger particles from the drum
- Minimal install height for full flexibility with gravity-fed systems
Technical Data
Dimensions (L x W x H) | mm | 885 x 685 x 820 |
Rated voltage | 230 V / 50 Hz | |
Power consumption | W | 5 |
Power consumption, cleaning | W | 870 |
Cable length | m | 5.00 + 1.00 |
Net weight | kg | 76.50 |
Limited Warranty | Years | 2 + 1 |
Biological filter surface | m² | 38.2 |
Biological filter surface protected | m² | 32.2 |
Control unit | Microcontroller | |
Temperature display | Digital | |
Coarse debris extraction | µm | 80 |
Number of nozzles/rinse quantity | 2 x 3.5 l/min | |
Scavenging pump | 4 bar | |
Automatic rinsing system | manually, Sensor, Time interval | |
Number of sieve elements | Units | 6 |
Filter intake surface | cm² | 1135 |
Material | GRP Duroplast/stainless steel | |
Inlet connections | mm | 50 |
Inlet connections | 1 x 2" + Bitron | |
Number of outlets | Units | 1 |
Outlet connections | DN 110 | |
Sludge discharge connections | DN 75, DN 110 | |
Flush trough connection | DN 110 | |
Connection to | AquaOxy 2000, Bitron C 72 - 110 W, Bitron Eco 120 - 240 W | |
Min. flow rate | l/h | 7500 |
Max. flow rate | l/h | 12500 |
Installation height above water level | cm | 32.0 |
Type of use | Pump fed system | |
Other | Aeration pre-installed incl. 40l Hel-X 13 Biomedia Pollutant discharge incl. slide valve |
