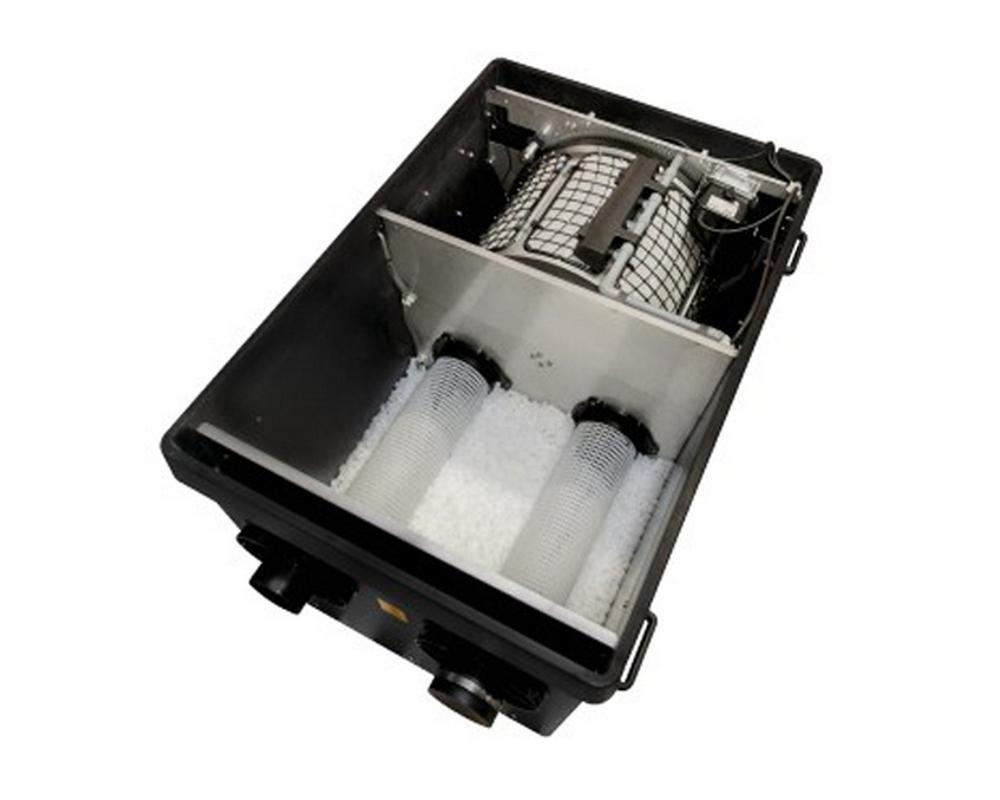

Oase Proficlear Premium Compact-L (Pumped)
Oase Proficlear Premium Compact-L (Pumped)
SKU:FS1983
Couldn't load pickup availability
This new compact drum filter of the ProfiClear Premium series is the inexpensive alternative for small to medium-sized bodies of water. The compact modular filter system is ideal for koi ponds up to 30 m³ in particular. Leading koi experts were consulted in developing the range. In the pumped principle, the maximum water flow through the filter is 20,000 liters per hour. With this completely self-cleaning drum filter unit, the moving bed system ensures optimal water movement and cleaning. Professional Hel-X bio-media effectively break down nutrients and pollutants in the water. A depth filtration of up to 60 microns and a new Hel-X 13 filter medium with a significantly larger surface ensure the high separation efficiency.
- Suitable for ponds up to 120.0 m³
- Conveniently control all settings via an app with the Easy Garden Control System (EGC); Existing systems can be upgraded using the separately available upgrade kit
- Inexpensive alternative for smaller ponds, particularly koi ponds
Technical Data
Dimensions (L x W x H) | mm | 1334 x 891 x 815 |
Rated voltage | 230 V / 50 Hz | |
Power consumption | W. | 5 |
Power consumption, cleaning | W. | 1050 |
Cable length | m | 5.00 + 1.00 |
Net weight | kg | 133.00 |
Limited warranty | Years | 2 + 1 |
Biological filter surface | m² | 57.3 |
Biological filter surface protected | m² | 48.4 |
Control unit | Microcontroller | |
Temperature display | Digital | |
Coarse debris extraction | µm | 60 |
Number of nozzles / rinse quantity | 4 x 2.5 l / min | |
Scavenging pump | 6 bar | |
Automatic rinsing system | manually, sensor, time interval | |
material | GRP Duroplast / stainless steel | |
Number of inlets | Units | 2 |
Inlet connections | mm | 50 |
Inlet connections | 1 x 2 "+ Bitron | |
Number of outlets | Units | 2 |
Outlet connections | DN 110 | |
Sludge discharge connections | DN 75, DN 110 | |
Flush through connection | DN 110 | |
Connection to | AquaOxy 2000, Bitron C 72 - 110 W, Bitron Eco 120 - 240 W | |
Min. Flow rate | l / h | 10,000 |
Max. Flow rate | l / h | 20000 |
Installation height above water level | cm | 37.0 |
Type of use | Pump fed system | |
Other |
Aeration pre-installed incl. 60l Hel-X 13 Biomedia |
