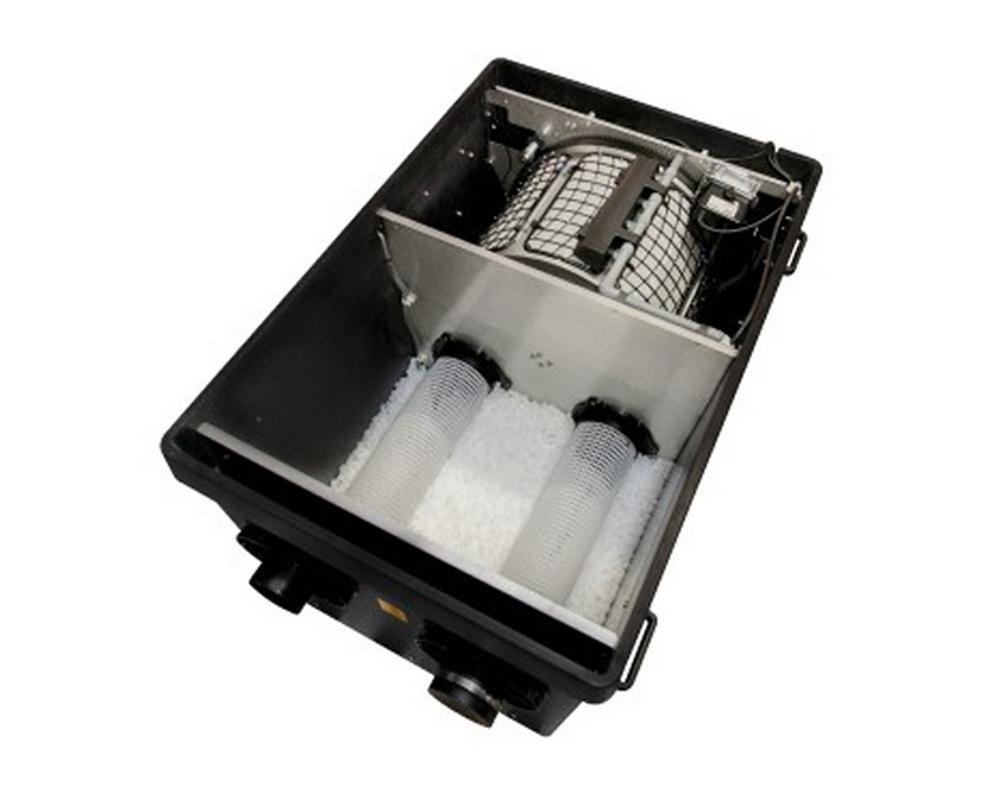

Oase Proficlear Premium Compact-L (Gravity)
Oase Proficlear Premium Compact-L (Gravity)
SKU:FS1984G
This new compact drum filter of the ProfiClear Premium series is the inexpensive alternative for small to medium-sized bodies of water. The compact modular filter system is particularly ideal for koi ponds up to 35 m³. Leading koi experts were consulted in developing the range. In the gravitation principle, the maximum water flow through the filter is 25,000 liters per hour. With this completely self-cleaning drum filter unit, the moving bed system ensures optimal water movement and cleaning. Professional Hel-X bacteria cause the effective breakdown of nutrients and pollutants in the water. A depth filtration of up to 60 microns and a new Hel-X 13 filter medium with a significantly larger surface ensure the high separation efficiency.
- Suitable for ponds up to 140.0 m³
- Conveniently control all settings via an app with the Easy Garden Control System (EGC); existing systems can be upgraded using the separately available upgrade kit
- Inexpensive alternative for smaller ponds, particularly koi ponds
Technical Data
Dimensions (L x W x H) | mm | 1370 x 891 x 815 |
Rated voltage | 230 V / 50 Hz | |
Power consumption | W | 5 |
Power consumption, cleaning | W | 1050 |
Cable length | m | 5.00 + 5.00 |
Net weight | kg | 131.50 |
Limited Warranty | Years | 2 + 1 |
Biological filter surface | m² | 57.3 |
Biological filter surface protected | m² | 48.4 |
Control unit | Microcontroller | |
Temperature display | Digital | |
Coarse debris extraction | µm | 60 |
Number of nozzles/rinse quantity | 4 x 2.5 l / min | |
Scavenging pump | 6 bar | |
Automatic rinsing system | manually, Sensor, Time interval | |
Material | GRP Duroplast/stainless steel | |
Number of inlets | Units | 3 |
Inlet connections | DN 110 | |
Number of outlets | Units | 2 |
Outlet connections | DN 150 | |
Sludge discharge connections | DN 75, DN 110 | |
Flush trough connection | DN 110 | |
Connection to | AquaOxy 2000, Bitron Gravity, ProfiClear Moving Bed Modul | |
Min. flow rate | l/h | 10000 |
Max. flow rate | l/h | 25000 |
Installation height above water level | cm | 12.5 |
Type of use | Gravity fed system | |
Other | Aeration pre-installed incl. 60l Hel-X 13 Biomedia |
