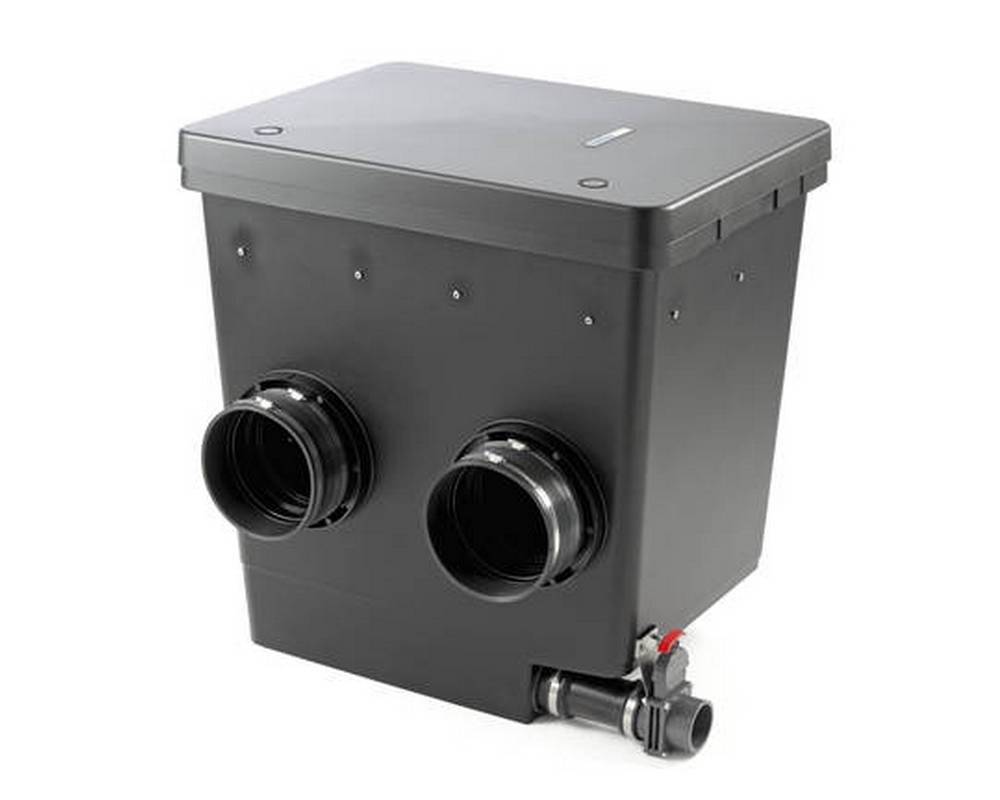

OASE Moving Bed Module

OASE Moving Bed Module

  • £739.38
Tax included.




Product characteristics

  • Highly effective decomposition of pollutants and nutrients, thanks to professional filter media and moving bed process (MovingBed)
  • Mature, professional technology with more than 3 years of development time
  • Innovative and reliable product «made in Germany» (except pressure pump)
  • Extremely large, protected settlement surface for micro-organisms (806 m²/m³)
  • Innovative bypass technology for optimal movement of the Hel-X bio-elements
  • Removal of toxins, such as ammonium / ammonia, nitrite and nitrate
  • 50 l Hel-X decompose approx. 340 g of fish food per day (can be extended to 75 l / module).
  • Aerator bar for oxygen enrichment and turbulence already installed
  • Permanent, optimal oxygen supply; self-cleaning effect from dead biomass
  • Pulling the slide valve flushes the debris out via a DN 75 discharge

Technical data

Dimensions (L x W x H) mm 830 x 600 x 820
Net weight kg 44.00
Guarantee (+ extended guarantee on request) Years 2 + 1
Biological filter surface 47.8
Biological filter surface protected 40.3
Material GRP Duroplast
Number of inlets EA 2
Connection inlet mm 180
Number of outlets EA 2
Connections, outlet DN 150
Connections, sludge discharge DN 75
Min. flow rate l/h 10000
Max. flow rate l/h 33000
Connection to AquaOxy CWS 2000 - 4800
Installation height above water level cm 11.5
Type of use Gravity fed system, Pump fed system
Other Aeration pre-installed
Pollutant discharge incl. slide valve
incl. 50l Hel-X 13 Biomedia
Item number 50772
EAN 4010052507729
