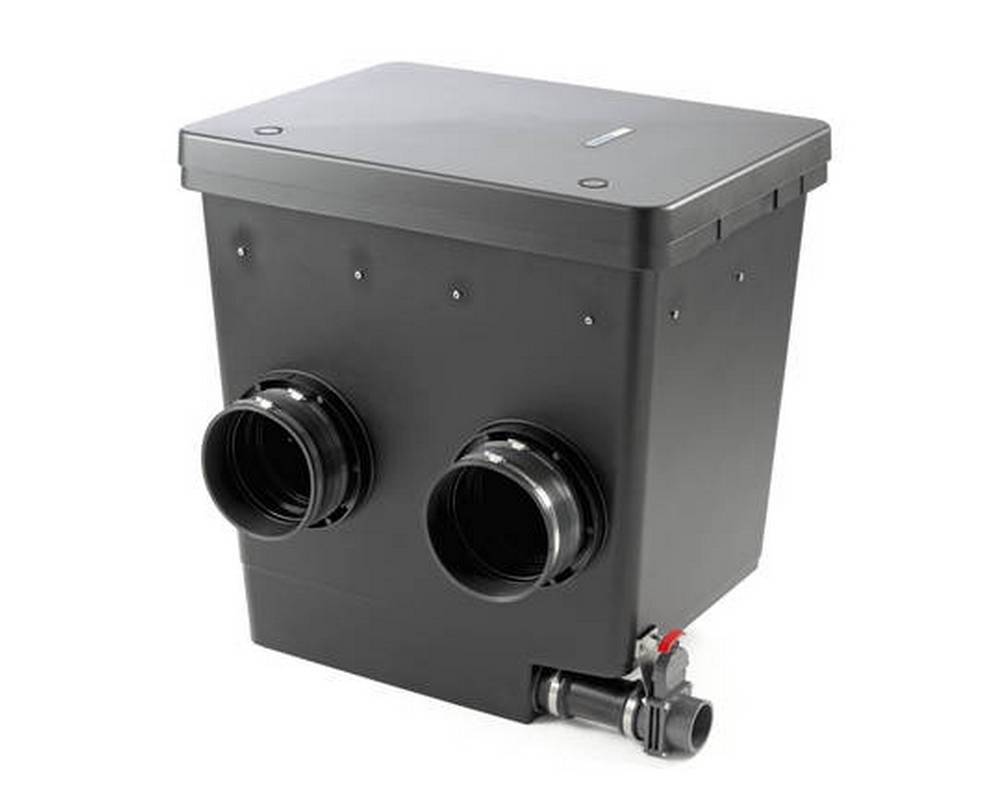

Oase Individual Module
Oase Individual Module
SKU:FS198
Regular price
£1,404.09 GBP
Regular price
Sale price
£1,404.09 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability
- Highly effective decomposition of pollutants and nutrients, thanks to professional filter media and moving bed process (MovingBed)
- Mature, professional technology with more than 3 years of development time
- Innovative and reliable product «made in Germany» (except pressure pump)
- Space saving pump and UVC chamber for
- Maximum flexibility in the connection through 2 x DN110 and 2" transitions
- To increase the filter capacity, it is possible to fill the individual baskets in the flow area with additional filter media ‚‚ up to 8 litres fill volume
- Integrated bottom drain with high quality, finely engineered slide valve
Technical data
| Dimensions (L x W x H) | mm | 830 x 600 x 820 |
|---|---|---|
| Net weight | kg | 37.00 |
| Guarantee (+ request guarantee) | Years | 2 + 1 |
| Material | GRP Duroplast/stainless steel | |
| Number of inlets | Units | 2 |
| Inlet connections | mm | 180 |
| Inlet connections | 2 x 185 mm | |
| Number of outlets | Units | 4 |
| Connections, outlet | mm | 50 |
| Outlet connections | 2 x 2" / 2 x DN 110 | |
| Sludge discharge connections | DN 75 | |
| Connection to | AquaMax Eco Gravity, Bitron Gravity | |
| Min. flow rate | l/h | 10000 |
| Max. flow rate | l/h | 33000 |
| Installation height above water level | cm | 11.5 |
| Type of use | Gravity fed system, Pump fed system | |
| Other | Pollutant discharge incl. slide valve |
Download manual HERE
