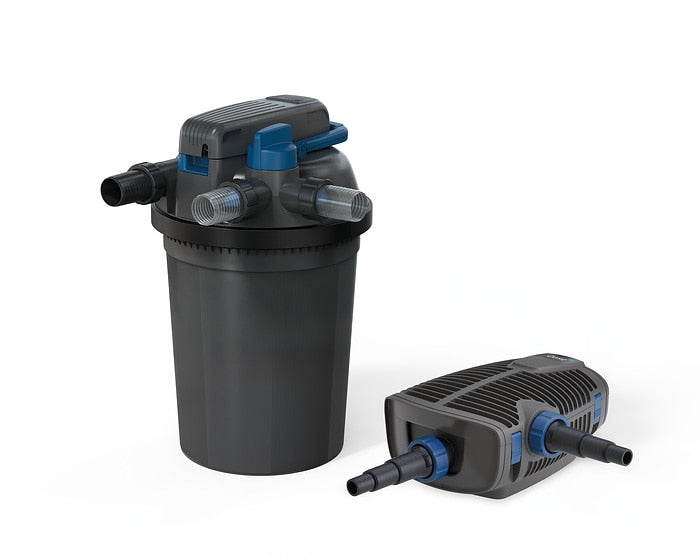

Introducing the FiltoClear 19000 Pressure Filter Set, paired with the reliable AquaMax Eco Premium pump, offering the perfect filter-pump combination for ponds and streams up to 19,000 liters. This comprehensive set ensures superior filtration and optimal water clarity while seamlessly integrating into your pond landscape.
The FiltoClear 19000 (380 mm x 630 mm) is a highly efficient pressure filter equipped with a patented cleaning mechanism and finely structured filter sponges. With its powerful 40-watt UV-C lamp, the FiltoClear 19000 delivers exceptional cleaning performance. Thanks to the OASE bypass technology, the filter maintains a high flow rate, eliminating any blockages. Cleaning the filter is effortless with the user-friendly pull mechanism, and you can even change the UV-C lamp during operation. Additionally, this model is equipped with the innovative UV cleaning rotor, ensuring thorough purification.
This filter set prioritizes convenience and efficiency. The FiltoClear 19000 features optimised filter sponges, facilitating easy maintenance and cleaning through a simple handle mechanism. The UV lamp can be changed without the need to switch off the filter or dismantle the quartz glass, allowing uninterrupted operation. The high-quality UVC housing protects the ballast unit from sunlight and moisture, ensuring long-lasting performance and reliability.
The set includes a two-way valve, allowing you to choose the direction of water flow, whether it's into the pond or into waste water after filter cleaning. The built-in OASE bypass technology enhances efficiency by ensuring optimum water flow and preventing filter clogging. The robust housing, made of high-quality plastic, can be easily buried in the ground, providing stability and exceptional durability.
The AquaMax Eco Premium pump (340 mm x 280 mm x 165 mm) included in this set perfectly complements the FiltoClear 19000. With a rated voltage of 220 - 240 V / 50 - 60 Hz, the pump offers a power consumption of 110 watts and a maximum flow rate of 13,000 liters per hour. It is designed for ponds up to a maximum of 19.0 m³, 10.0 m³ with fish stock, and 5.0 m³ with koi. The AquaMax Eco Premium pump comes with a 3-year guarantee, extendable to 5 years upon request, and a power cable length of 10.00 meters.
Experience exceptional filtration and unmatched water clarity with the FiltoClear 19000 Pressure Filter Set. Trust in OASE's commitment to quality and reliability for your pond and stream needs.
Technical data
| Dimensions filter (L x W x H) | mm | 380 x 380 x 608 |
| Net weight | kg | 15.40 |
| Rated voltage filter | 220 - 240 V / 50 - 60 Hz | |
| Power consumption UVC | W | 42 |
| UVC cleaning rotor | Yes | |
| Guarantee (+ request guarantee) | Years | 2 + 1 |
| Power cable length UVC | m | 5.00 |
| Number of blue filter foams | Units | 2 |
| Number of red filter foams | Units | 1 |
| Number of purple filter foams | Units | 1 |
| Inlet connections | mm | 38 / 50 |
| Inlet connections | 1 ½", 2" | |
| Connections, outlet | mm | 38 / 50 |
| Outlet connections | 1 ½", 2" | |
| Connections, sludge discharge | mm | 38 / 50 |
| Sludge discharge connections | 1 ½", 2" | |
| Max. operating pressure | bar | 0.2 |
| Dimensions pump (L x W x H) – mm | mm | 340 x 280 x 165 |
| Rated voltage Pump | 220 - 240 V / 50 - 60 Hz | |
| Power consumption pump | W | 110 |
| Max. flow rate | l/h | 13000 |
| Guarantee (+ request guarantee) pump | Years | 3 + 2 |
| Power cable length pump | m | 10.00 |
| Suitable for ponds up to max. | m3 | 19.0 |
| Suitable for ponds with fish stock | m3 | 10.0 |
| Suitable for ponds with koi | m3 | 5.0 |
