Oase FiltoClear 13000 Set
Oase FiltoClear 13000 Set
SKU:FS2021
Couldn't load pickup availability

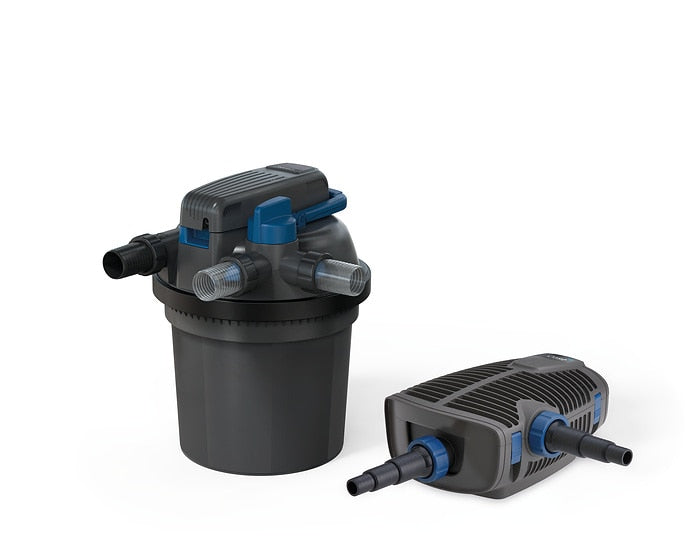

Introducing the FiltoClear 13000 Pressure Filter Set, combined with the reliable AquaMax Eco Premium pump, providing the ideal filter-pump combination for ponds and streams up to 13,000 liters. This comprehensive set ensures exceptional filtration and water clarity, perfectly suited for your pond needs.
The FiltoClear 13000 (380 mm x 510 mm) offers highly effective cleaning performance with its finely structured filter sponges and powerful 24-watt UV-C lamp. The filter's operating elements, made of high-quality plastic, allow for easy integration into the pond landscape by burying it in the ground. With the OASE bypass technology, the filter maintains a high flow rate, preventing any blockages. Cleaning the filter is made effortless with the user-friendly pull mechanism, and you can even change the UV-C lamp while the unit is running.
This filter set prioritizes convenience and efficiency. The patented cleaning mechanism and optimized filter sponges ensure effortless maintenance and cleaning through a simple handle mechanism. The UV lamp can be easily replaced without switching off the filter or dismantling the quartz glass, allowing continuous operation. The high-quality UVC housing protects the ballast unit from sunlight and moisture, ensuring durability and longevity.
The set includes a two-way valve, allowing you to choose the direction of water flow, either back into the pond or into the waste water after filter cleaning. The built-in OASE bypass technology enhances efficiency by ensuring optimum water flow and preventing filter clogging. The hard-wearing housing, made of high-quality plastic, can be conveniently buried in the ground, providing stability and long-lasting performance.
The AquaMax Eco Premium pump (340 mm x 280 mm x 165 mm) included in this set perfectly complements the FiltoClear 13000. With a rated voltage of 220 - 240 V / 50 - 60 Hz, the pump offers a power consumption of 60 watts and a maximum flow rate of 9,000 liters per hour. It is designed for ponds up to a maximum of 13.0 m³, 7.0 m³ with fish stock. The AquaMax Eco Premium pump comes with a 3-year guarantee, extendable to 5 years upon request, and a power cable length of 10.00 meters.
Experience superior filtration and pristine water clarity with the FiltoClear 13000 Pressure Filter Set. Rely on OASE's commitment to quality and reliability for your pond and stream requirements.
Technical data
| Dimensions filter (L x W x H) | mm | 380 x 380 x 488 |
| Net weight | kg | 14.50 |
| Rated voltage filter | 220 - 240 V / 50 - 60 Hz | |
| Power consumption UVC | W | 24 |
| UVC cleaning rotor | No | |
| Guarantee (+ request guarantee) | Years | 2 + 1 |
| Power cable length UVC | m | 5.00 |
| Number of blue filter foams | Units | 1 |
| Number of red filter foams | Units | 1 |
| Number of purple filter foams | Units | 1 |
| Inlet connections | mm | 38 / 50 |
| Inlet connections | 1 ½", 2" | |
| Connections, outlet | mm | 38 / 50 |
| Outlet connections | 1 ½", 2" | |
| Connections, sludge discharge | mm | 38 / 50 |
| Sludge discharge connections | 1 ½", 2" | |
| Max. operating pressure | bar | 0.2 |
| Dimensions pump (L x W x H) – mm | mm | 340 x 280 x 165 |
| Rated voltage Pump | 220 - 240 V / 50 - 60 Hz | |
| Power consumption pump | W | 60 |
| Max. flow rate | l/h | 9000 |
| Guarantee (+ request guarantee) pump | Years | 3 + 2 |
| Power cable length pump | m | 10.00 |
| Suitable for ponds up to max. | m3 | 13.0 |
| Suitable for ponds with fish stock | m3 | 7.0 |
