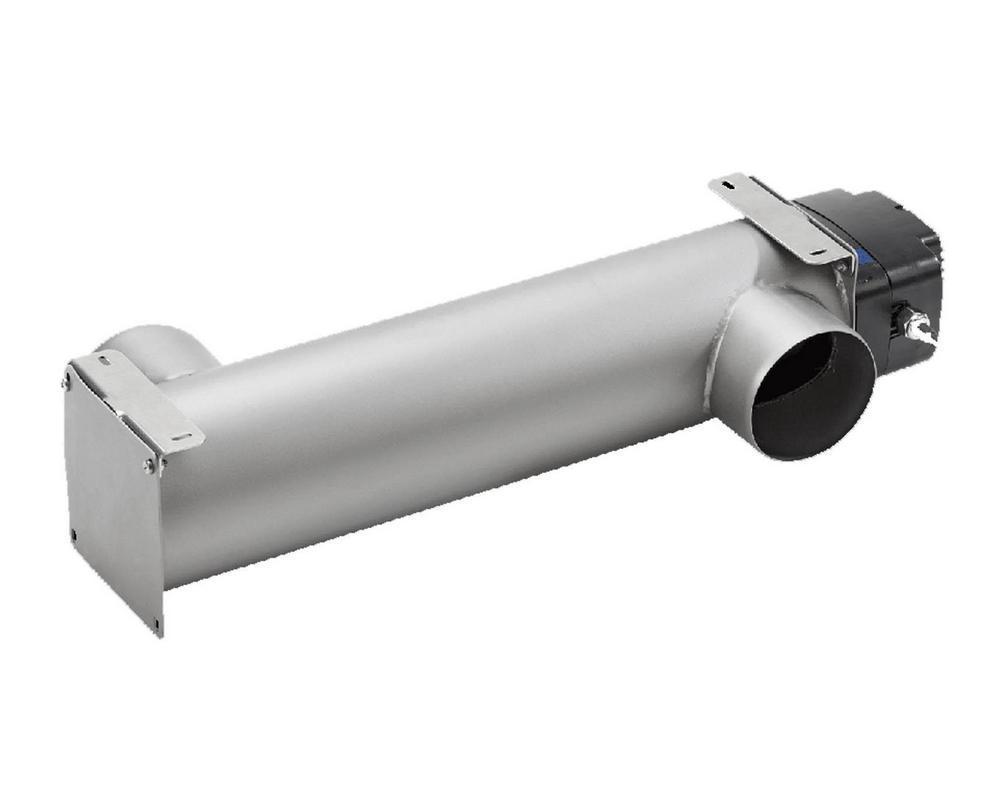

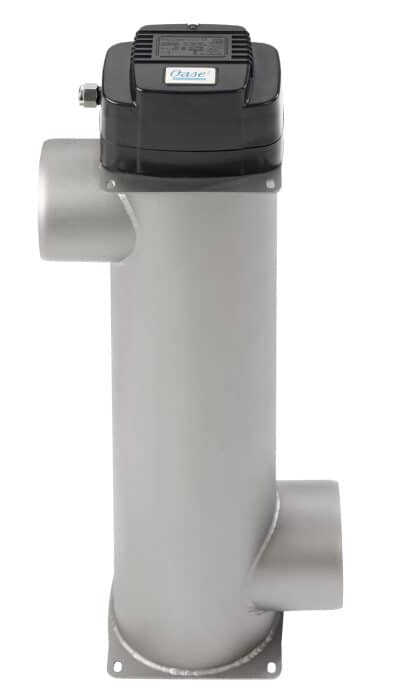

Oase Bitron Gravity 55W

  • Sale
  • Regular price £717.28
Tax included.

Highly efficient - perfect for gravitational filter systems in ponds up to 70 m³. Similar to a submersible UVC, the Bitron Gravity UVC clarifier removes algae and other pathogenic bacteria extremely reliably and hardly creates any flow losses. This is made possible by the flow-optimized reactor design for direct irradiation and by the particularly long retention time of the water in the Bitron. With an output of 55 watts and a recommended flow rate of 12500 l / h, it remains extremely energy-efficient and offers above-average disinfection rates. The high-quality V4A stainless steel housing also ensures stability and good reflection rates. Stainless steel connecting elements and flexible connecting sleeves ensure particularly convenient and safe installation, whether dry or directly in the water (max. 10 cm), before or after the filter system. Don't worry about damaging your eyes, because the device is VDE-tested and 100% safe. Including clear water guarantee in connection with OASE ProfiClear filters. Trust in OASE quality, because you receive a 2-year guarantee.

  • 100% protection against eye damage
  • Energy efficient thanks to electronic ballast
  • Exceptionally effective sterilization thanks to the long retention time of the water in the Bitron
  • Flow-optimized reactor design ensures direct and virtually loss-free UV radiation
  • High-quality V4A stainless steel housing for stability and good reflection rates
  • Extremely easy installation with stainless steel connection elements
  • Flexible connection upstream or downstream of the ProfiClear filter system - as well as for other gravity-fed applications
  • In the event of pond enlargements or an increase in fish stock, extension with additional Bitron Premium UVC devices is possible at any time
  • Visual function check
  • Horizontal or vertical setup possible
  • Clear water guarantee when used in conjunction with OASE ProfiClear filters
  • Depending on requirements, the Bitron Premium 120 W and 180 W lamps can be switched on individually
  • Suitable for ponds up to 90.0 m³

Technical Data

Dimensions (L x W x H) mm 700 x 260 x 160
Rated voltage 220 - 240 V / 50/60 Hz
Power consumption W. 55
Power cable length m 5.00
Net weight kg 6.98
Limited warranty Years 2
UVC power W. 55
UVC operating hours meter No
Function check Visual
Number of inlets Units 1
Inlet connections DN 110
Number of outlets Units 1
Outlet connections DN 110
Max. Flow rate l / h 30000
Max. Operating pressure bar 0.6
Rec. Flow rate (gravity-fed) l / h 16500
Suitable for ponds up to max. 90.0
Suitable for ponds with fish stock 50.0
Suitable for ponds with koi 33.0
material Plastic / stainless steel
Connection to AquaMax Eco Gravity, ProfiClear
Type of use Gravity fed system, Pump fed system
