Oase Bitron C 55 W
Oase Bitron C 55 W
SKU:UV5686

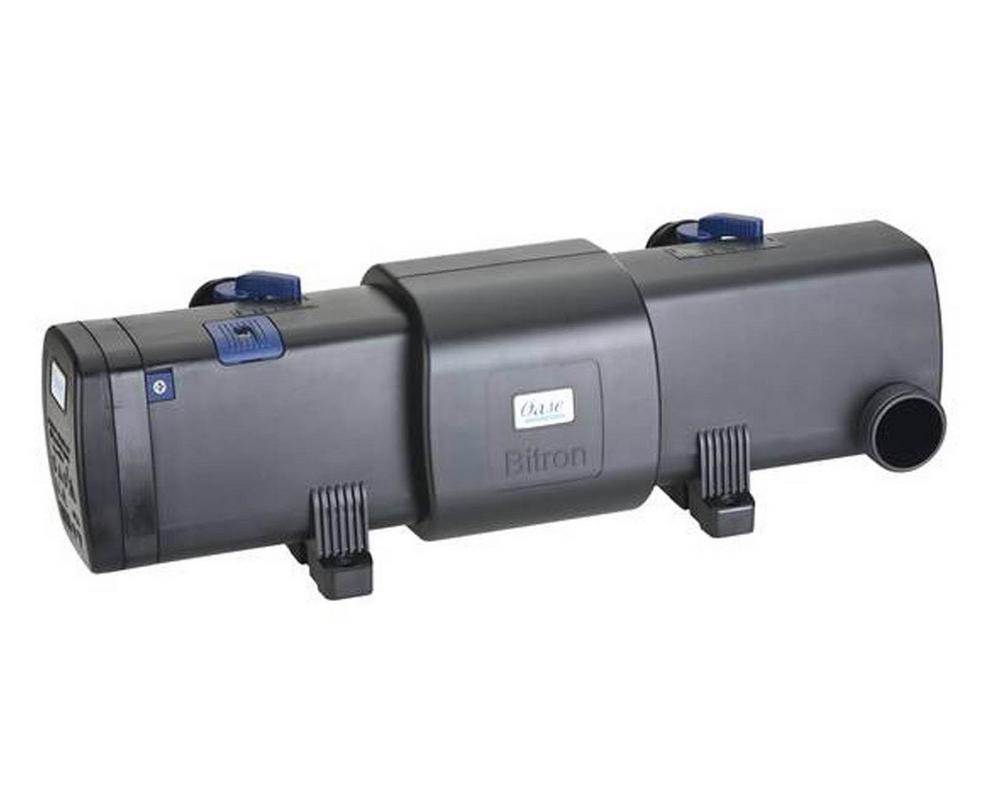

The UVC clarifier OASE Bitron C 55 W removes floating algae and reduces harmful bacteria for healthy and clear water. An automatic cleaning system ensures fully effective UVC radiation at all times. A control window provides additional functional reliability. Eye protection guaranteed by 100%, VDE-tested safety. With a power consumption of 55 watts, 6,500 l / h can flow past the UVC tube without a bypass. The flow can be individually adjusted and regulated. The OASE Bitron C 55 W UVC clarifier is available complete with a universal stepped hose nozzle from ¾ "(19 mm) to 2" (51 mm). The cable is 5 m long. A flow nozzle optimizes the flow to the cleaning rotor. The nominal voltage is 230 V / 50 Hz. Optimal for connection to BioSmart 36000 and BioTec Screenmatic 12-18.
- Elimination of suspended algae (green water)
- Reduction of harmful bacteria and pathogen levels
- Clever UVC function monitor, display for bulb change and water temperature
- Bypass technology enables optimal irradiation of the polluted water, even at high flow through rates
- Individual water flow adjustment for optimal adaptation to the connected filter pump
- Integrated magnets protect the UVC technology against limescale deposits
- Visual function check of the UVC bulb
- 100% protection against eye damage
- Quick release technology for easy bulb replacement
- High-quality workmanship with impact resistant plastic housing
- Incl. high quality UVC bulb
- Including OASE Clear Water Guarantee in conjunction with the OASE flow through filters, BioSmart, BioTec and ProfiClear
- Suitable for ponds up to 60.0 m³
Technical Data
Dimensions (L x W x H) | mm | 600 x 180 x 198 |
Rated voltage | 220 - 240 V / 50/60 Hz | |
Power consumption | W. | 55 |
Power cable length | m | 5.00 |
Net weight | kg | 4.03 |
Limited warranty | Years | 2 |
UVC power | W. | 55 |
Temperature display | No | |
UVC bypass | manually | |
UVC operating hours meter | No | |
Function check | Visual | |
Number of inlets | Units | 1 |
Inlet connections | mm | 19/25/32/38/50 |
Inlet connections | ¾ ", 1", 1 ¼ ", 1 ½", 2 " | |
Number of outlets | Units | 2 |
Connections, outlet | mm | 25/32/38 |
Outlet connections | 1 ", 1 ¼", 1 ½ " | |
Min. Flow rate | l / h | 8000 |
Max. Flow rate | l / h | 30000 |
Max. Operating pressure | bar | 0.5 |
Suitable for ponds up to max. | m³ | 60.0 |
Suitable for ponds with fish stock | m³ | 30.0 |
Suitable for ponds with koi | m³ | 15.0 |
Connection to | BioSmart 18000/36000, BioTec ScreenMatic² 40 - 60000 |
