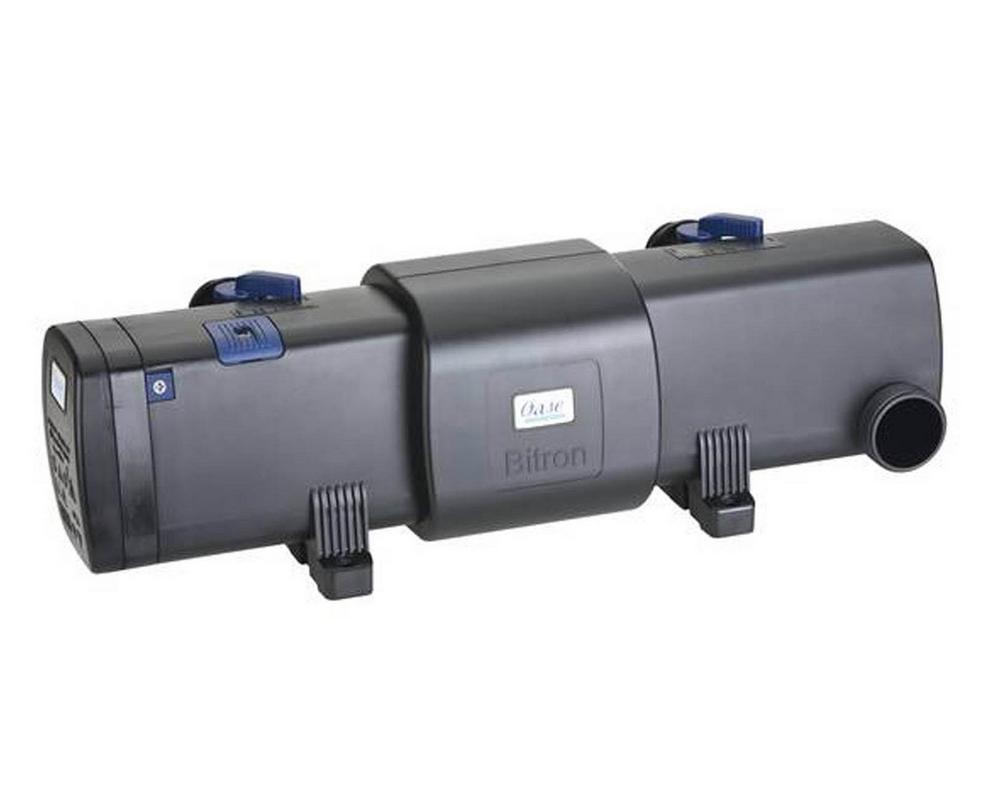

The UVC clarifier OASE Bitron C 36 W removes floating algae and reduces harmful bacteria for healthy and clear water. An automatic cleaning system ensures fully effective UVC radiation at all times. A control window provides additional functional reliability. Eye protection guaranteed by 100%, VDE-tested safety. With a power consumption of 36 watts, 4,500 l / h can flow past the UVC tube without a bypass. The flow can be individually adjusted and regulated. The OASE Bitron C 36 W UVC clarifier is available complete with a universal stepped hose nozzle from ¾ "(19 mm) to 2" (51 mm). The cable is 5 m long. A flow nozzle optimizes the flow to the cleaning rotor. The nominal voltage is 230 V / 50 Hz. Optimal for connection to BioSmart 18000/36000 and BioTec Screenmatic 12-18.
- Elimination of suspended algae (green water)
- Reduction of harmful bacteria and pathogen levels
- Clever UVC function monitor, display for bulb change and water temperature
- Bypass technology enables optimal irradiation of the polluted water, even at high flow through rates
- Individual water flow adjustment for optimal adaptation to the connected filter pump
- Integrated magnets protect the UVC technology against limescale deposits
- Visual function check of the UVC bulb
- 100% protection against eye damage
- Quick release technology for easy bulb replacement
- High-quality workmanship with impact resistant plastic housing
- Incl. high quality UVC bulb
- Including OASE Clear Water Guarantee in conjunction with the OASE flow through filters, BioSmart, BioTec and ProfiClear
- Suitable for ponds up to 40.0 m³
Technical Data
| Dimensions (L x W x H) | mm | 600 x 180 x 198 |
| Rated voltage | 220 - 240 V / 50/60 Hz | |
| Power consumption | W. | 36 |
| Power cable length | m | 5.00 |
| Net weight | kg | 3.97 |
| Limited warranty | Years | 2 |
| UVC power | W. | 36 |
| Temperature display | No | |
| UVC bypass | manually | |
| UVC operating hours meter | No | |
| Function check | Visual | |
| Number of inlets | Units | 1 |
| Inlet connections | mm | 19/25/32/38/50 |
| Inlet connections | ¾ ", 1", 1 ¼ ", 1 ½", 2 " | |
| Number of outlets | Units | 2 |
| Connections, outlet | mm | 25/32/38 |
| Outlet connections | 1 ", 1 ¼", 1 ½ " | |
| Min. Flow rate | l / h | 8000 |
| Max. Flow rate | l / h | 30000 |
| Max. Operating pressure | bar | 0.5 |
| Suitable for ponds up to max. | m³ | 40.0 |
| Suitable for ponds with fish stock | m³ | 20.0 |
| Suitable for ponds with koi | m³ | 10.0 |
| Connection to | BioSmart 18000/36000, BioTec ScreenMatic² 40 - 60000 |
