Oase

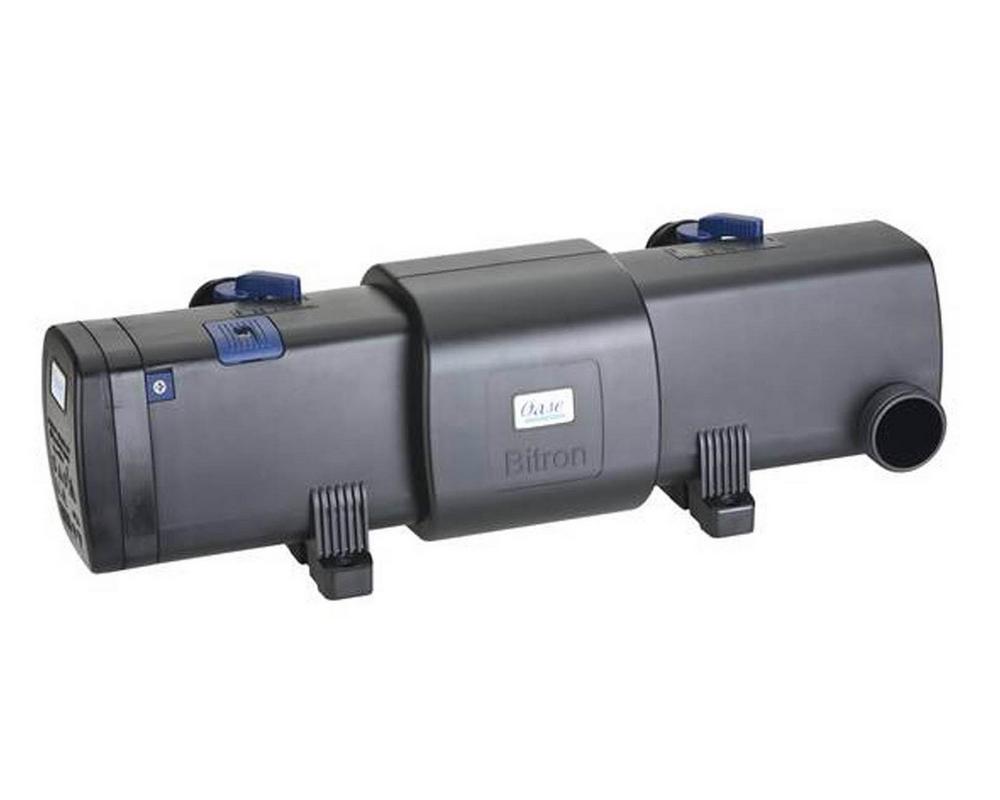

Oase Bitron C 72 W

Oase Bitron C 72 W

SKU:UV5687

Regular price £544.99 GBP
Regular price £546.43 GBP Sale price £544.99 GBP
Sale Sold out
Taxes included.



The OASE Bitron C 72 W UVC clarifier removes floating algae and reduces harmful bacteria for healthy and clear water. An automatic cleaning system ensures fully effective UVC radiation at all times. A control window provides additional functional reliability. With a power consumption of 72 watts, 9,000 l / h can flow past the UVC tube without a bypass. The flow can be individually adjusted and regulated. The OASE Bitron C 72 W UVC clarifier is available complete with a universal stepped hose nozzle from ¾ "to 2". The cable is 5 m long. A flow nozzle optimizes the flow to the cleaning rotor. The nominal voltage is 230 V / 50 Hz. Ideal for connection to ProfiClear, BioTec 30 and BioTec ScreenMatic 36. You receive a 2-year guarantee.

  • Elimination of suspended algae (green water)
  • Reduction of harmful bacteria and pathogen levels
  • Clever UVC function monitor, display for bulb change and water temperature
  • Bypass technology enables optimal irradiation of the polluted water, even at high flow through rates
  • Individual water flow adjustment for optimal adaptation to the connected filter pump
  • Integrated magnets protect the UVC technology against limescale deposits
  • Visual function check of the UVC bulb
  • 100% protection against eye damage
  • Quick release technology for easy bulb replacement
  • High-quality workmanship with impact resistant plastic housing
  • Incl. high quality UVC bulb
  • Including OASE Clear Water Guarantee in conjunction with the OASE flow through filters, BioSmart, BioTec and ProfiClear
  • Suitable for ponds up to 75.0 m3
  • SELF-CLEANING: Highly effective UV radiation at all times thanks to patented, independent lamp cleaning
  • QUICK-RELEASE CLOSURE: For easy opening of the lamp housing. To protect against eye damage, a safety switch automatically deactivates the UVC lamp
  • WELL PROTECTED: 100% protection against eye damage
  • AUTOMATIC: Due to the water flow, the cleaning rotor is continuously and automatically guided around the quartz glass tube and thus prevents dirt deposits
  • INCLUDED: High-quality UVC lights
  • QUALITY: High-quality design with impact-resistant plastic
  • EYE-CATCHING: Visual function check of the UVC light
  • GUARANTEED: Includes OASE clear water guarantee (in conjunction with the OASE flow-through filters BioSmart, BioTec and ProfiClear)
  • INTEGRATED: Magnets for protecting the filter equipment from lime deposits
  • SYNCHRONOUS: Individual regulation of the water flow rate allows you to optimally tune the Bitron C to the connected filter pump

Technical Data

Dimensions (L x W x H) mm 730 x 215 x 200
Rated voltage 220 - 240 V / 50/60 Hz
Power consumption W 72
Power cable length m 5.00
Net weight kg 6.44
Limited Warranty Years 2
UVC power W 72
Temperature display No
UVC Bypass manually
UVC operating hours meter No
Function check Visual
Number of inlets Units 1
Inlet connections mm 19 / 25 / 32 / 38 / 50
Inlet connections ¾", 1", 1 ¼", 1 ½", 2"
Number of outlets Units 2
Connections, outlet mm 25 / 32 / 38
Outlet connections 1", 1 ¼", 1 ½"
Min. flow rate l/h 12000
Max. flow rate l/h 40000
Max. operating pressure bar 1
Suitable for ponds up to max. 3 75.0
Suitable for ponds with fish stock 3 37.5
Suitable for ponds with koi 3 19.0
Connection to BioTec 30, BioTec ScreenMatic² 90 - 140000, ProfiClear
