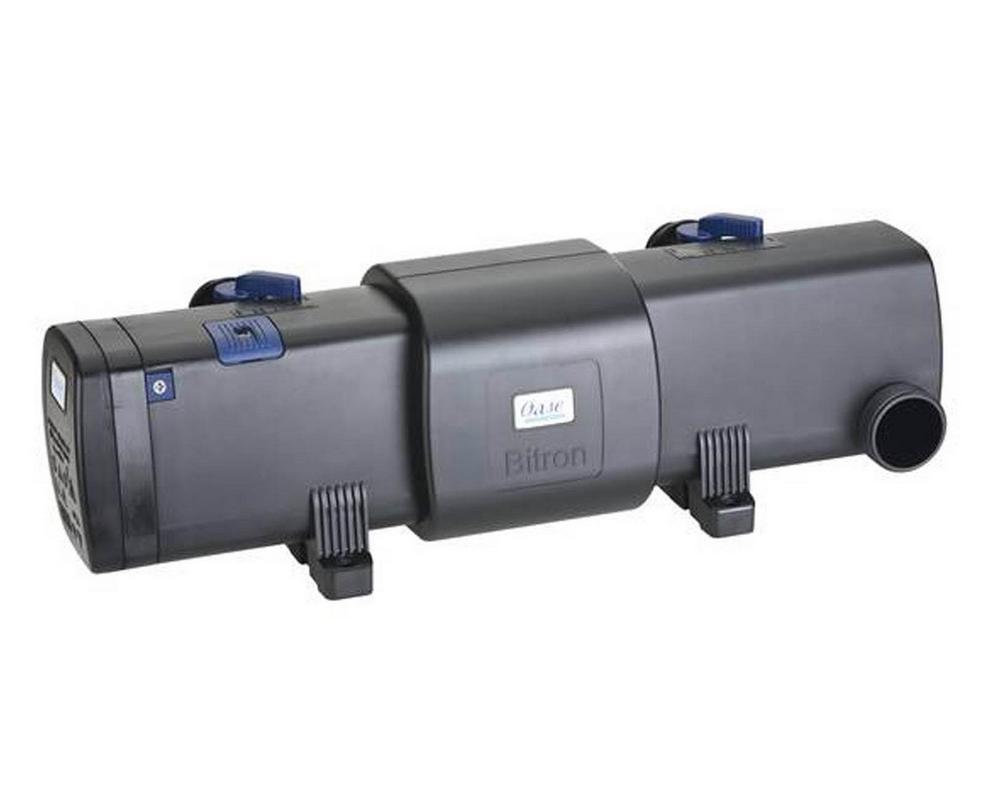

Oase Bitron C 110 W
Oase Bitron C 110 W
SKU:UV5688
The OASE Bitron C 110 W UVC clarifier removes floating algae and reduces harmful bacteria for healthy and clear water. An automatic cleaning system ensures fully effective UVC radiation at all times. A control window provides additional functional reliability. With a power consumption of 110 watts, 12,000 l / h can flow past the UVC tube without a bypass. The flow can be individually adjusted and regulated. The OASE Bitron C 110 W UVC clarifier is available complete with a universal stepped hose nozzle from ¾ "to 2". The cable is 5 m long. A flow nozzle optimizes the flow to the cleaning rotor. The nominal voltage is 230 V / 50 Hz. Ideal for connection to ProfiClear, BioTec 30 and BioTec ScreenMatic 36. You receive a 2-year guarantee.
- Elimination of suspended algae (green water)
- Reduction of harmful bacteria and pathogen levels
- Clever UVC function monitor, display for bulb change and water temperature
- Bypass technology enables optimal irradiation of the polluted water, even at high flow through rates
- Individual water flow adjustment for optimal adaptation to the connected filter pump
- Integrated magnets protect the UVC technology against limescale deposits
- Visual function check of the UVC bulb
- 100% protection against eye damage
- Quick release technology for easy bulb replacement
- High-quality workmanship with impact resistant plastic housing
- Incl. high quality UVC bulb
- Including OASE Clear Water Guarantee in conjunction with the OASE flow through filters, BioSmart, BioTec and ProfiClear
- Suitable for ponds up to 110.0 m3
- SELF-CLEANING: Highly effective UV radiation at all times thanks to patented, independent lamp cleaning
- QUICK-RELEASE CLOSURE: For easy opening of the lamp housing. To protect against eye damage, a safety switch automatically deactivates the UVC lamp
- WELL PROTECTED: 100% protection against eye damage
- AUTOMATIC: Due to the water flow, the cleaning rotor is continuously and automatically guided around the quartz glass tube and thus prevents dirt deposits
- INCLUDED: High-quality UVC lights
- QUALITY: High-quality design with impact-resistant plastic
- EYE-CATCHING: Visual function check of the UVC light
- GUARANTEED: Includes OASE clear water guarantee (in conjunction with the OASE flow-through filters BioSmart, BioTec and ProfiClear)
- INTEGRATED: Magnets for protecting the filter equipment from lime deposits
- SYNCHRONOUS: Individual regulation of the water flow rate allows you to optimally tune the Bitron C to the connected filter pump
Technical Data
Dimensions (L x W x H) | mm | 730 x 215 x 200 |
Rated voltage | 220 - 240 V / 50/60 Hz | |
Power consumption | W | 110 |
Power cable length | m | 5.00 |
Net weight | kg | 6.50 |
Limited Warranty | Years | 2 |
UVC power | W | 110 |
Temperature display | No | |
UVC Bypass | manually | |
UVC operating hours meter | No | |
Function check | Visual | |
Number of inlets | Units | 1 |
Inlet connections | mm | 19 / 25 / 32 / 38 / 50 |
Inlet connections | ¾", 1", 1 ¼", 1 ½", 2" | |
Number of outlets | Units | 2 |
Connections, outlet | mm | 25 / 32 / 38 |
Outlet connections | 1", 1 ¼", 1 ½" | |
Min. flow rate | l/h | 12000 |
Max. flow rate | l/h | 40000 |
Max. operating pressure | bar | 1 |
Suitable for ponds up to max. | m 3 | 110.0 |
Suitable for ponds with fish stock | m 3 | 55.0 |
Suitable for ponds with koi | m 3 | 27.5 |
Connection to | BioTec 30, BioTec ScreenMatic² 90 - 140000, ProfiClear |
