Evolution Aqua

NEXUS AUTOMATIC SYSTEM for pump fed

FS306
  • Sale
  • Regular price £547.80
Tax included.


All new Nexus Automatic System-

Continuing Evolution Aqua's long standing reputation for innovation, the Nexus Automatic System now enables Nexus owners
to benefit from a fully automated cleaning cycle on their multi award winning Nexus filtration systems. Physically turning
ball valves and manually switching pumps on and off will now be a thing of the past thanks to the Nexus Automatic System.
All of the key processes that form the cleaning cycle are now controlled automatically with this easy to install kit.


Key Features-

  • Hassle free way to clean Nexus filtration systems
  • Automates the cleaning process of the Nexus
  • Easily fits onto Nexus filters (post 2006 models)

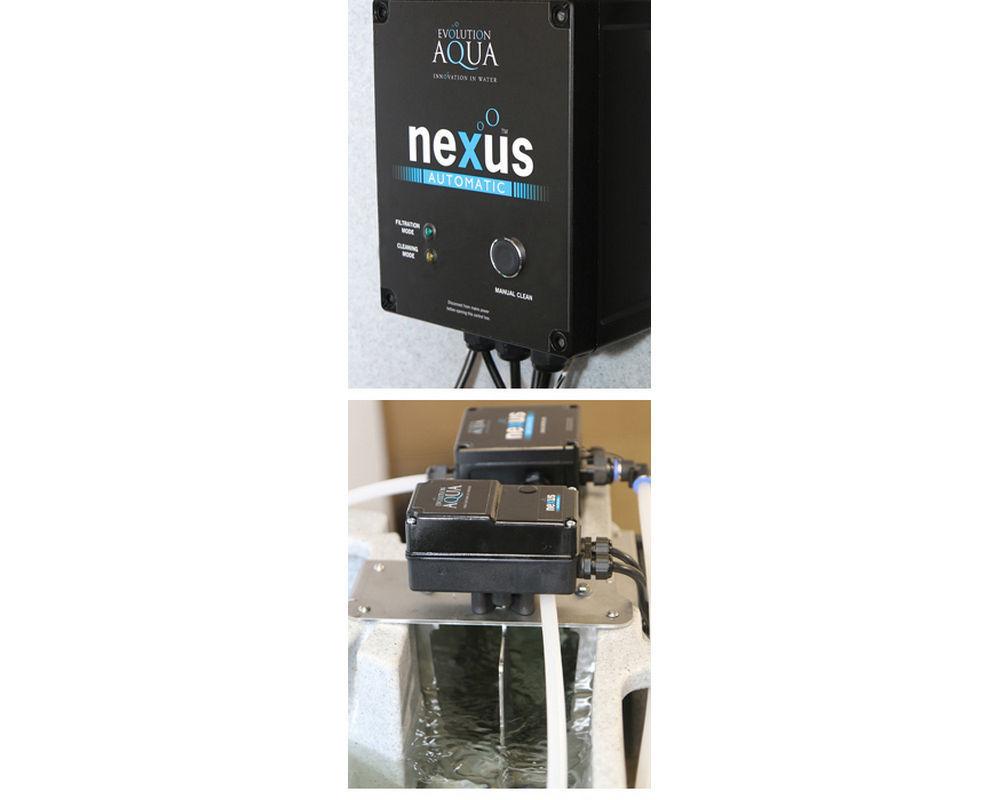

  • Electronic control box automatically operates valves and pumps
  • Adjustable timer controls the frequency of the automatic cleaning cycle to suit the user's needs
  • Easy to set up for multiple cleaning cycles
  • Manual cleaning cycle can be carried out if needed, at the touch of a button
  • GRAVITY and PUMP FED versions available


Automatic Cleaning Process-
The Nexus Automatic System will control the cleaning cycle fully automatically.
Cleaning is done on a timer, which is factory set to clean once every 3 days, however, this is easily adjustable to fit in with
your pond requirements. The Nexus Automatic System will run a cleaning cycle which lasts approximately 10 minutes.


Nexus Automatic Gravity Fed cleaning cycle:

  • Adjustable timer kicks in to start a cleaning cycle.
  • Control box automatically switches circulating pump off.
  • The water level in the Nexus equalises.
  • Inlet valve closes whilst at the same time air is diverted from the outer bio chamber to the EAZY to clean the K1 Micro.
  • After K1 Micro has been cleaned, the waste valve opens.
  • Eazy is drained to waste and inlet valve opens for a final flush of the EAZY.
  • The waste valve closes.
  • Air is diverted back from the EAZY to the bio chamber.
  • Circulating pump is switched back on.
  • Nexus returns to filtration mode.


Nexus Automatic Pump Fed cleaning cycle:

  • Adjustable timer kicks in to start a cleaning cycle.
  • Control box automatically switches circulating pump off.
  • The water level in the Nexus equalises
  • Air is diverted from the outer bio-chamber to the Eazy to clean the media.
  • After the media inside the Eazy has been cleaned, the automated waste valve opens.
  • Eazy is drained to waste.
  • The automated waste valve closes.
  • Air is diverted back from the Eazy to the bio-chamber.
  • Circulating pump is switched back on.
  • Nexus returns to filtration mode.
