Evolution Aqua

EVO 30w UVC

UV5669
  • Sale
  • $189.00
  • Regular price $200.00


The Evolution Aqua evoUV deliver a more efficient and more economical performance than before thanks to their new design. The new range includes completely redesigned 30 Watt and 55 Watt models and a 110 UV, a 15 Watt and 25 Watt model perfect for use on the smaller garden pond, along with a 75 Watt version. Our new range of evoUV pond clarifiers have been manufactured to deliver optimum performance at all times. evoUVs have been designed to clear green water, which is caused by single celled green algae, and prevent it from returning.

  • Eradicates green water in garden ponds
  • Features highly efficient ballasts
  • IP Rating of IPX5
  • Easy to maintain, easy to install
  • Ballast located in a fully water-tight cover
  • Connects to flexi-hose or rigid pipework
  • 6 models; 15W, 25W, 30W, 55W, 75W & 110W

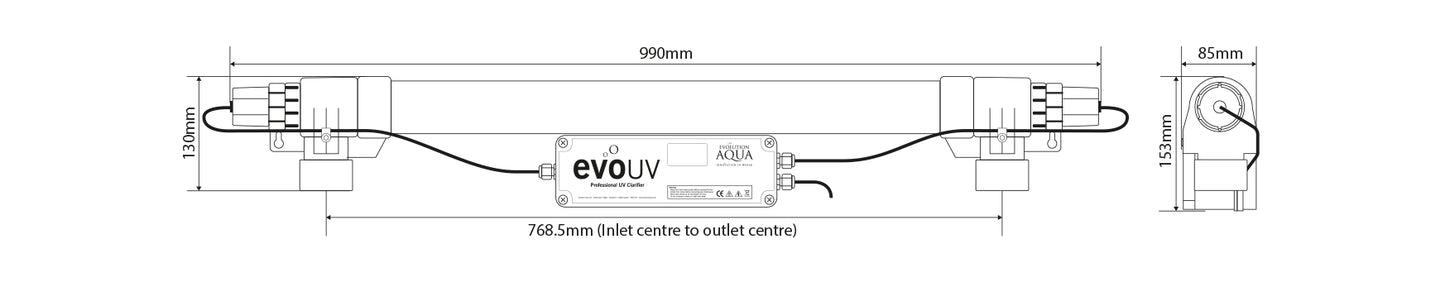

The overall dimensions of evo30 and evo55 are identical.

They are 990mm (l) x 85mm (w) x 153mm (h) excluding hosetails. The distance between the centre of the inlet and the centre of the outlet is 768.5mm. The evo30 uses a standard length 30W T8 UV bulb and the evo55 uses a standard 55W T8 UV bulb.

Installing the evoUV

PUMP-FED INSTALLATION

Install evoUV before the filter on the pipework run from the pond

EvoUV Pump Fed


GRAVITY-FED INSTALLATION

Install evoUV after the filter on the return to pond pipework run.

EvoUv gravity Installation



evo110 Dimensions

TECHNICAL DATA:

Model Max. pond size Max. flow rate Bulb Power Inlet/Outlet Fittings supplied
EVO15 15,000 Litres
3,300 UK Gallons
3,963 US Gallons
7,500 Litres/hr
1,650 UK Gallons/hr
1,982 US Gallons/hr
15W
(1 x 15W T8)
1½" 2 x 1½"
Threaded Hosetails
EVO25 20,000 Litres
4,400 UK Gallons
5,284 US Gallons
10,000 Litres/hr
2,200 UK Gallons/hr
2,642 US Gallons/hr
25W
(1 x 25W T8)
1½" 2 x 1½"
Threaded Hosetails
EVO30 30,000 Litres
6,600 UK Gallons
7,925 US Gallons
15,000 Litres/hr
3,300 UK Gallons/hr
3,962 US Gallons/hr
30W
(1 x 30W T8)
1½" 2 x 1½"
Threaded Hosetails
EVO55 55,000 Litres
12,100 UK Gallons
14,530 US Gallons
20,000 Litres/hr
4,400 UK Gallons/hr
5,284 US Gallons/hr
55W
(1 x 55W T8)
1½" 2 x 1½"
Threaded Hosetails
EVO75 75,000 Litres
16,500 UK Gallons
19,815 US Gallons
25,000 Litres/hr
5,500 UK Gallons/hr
6,605 US Gallons/hr
75W
(1 x 75W T8)
1½" 2 x 1½"
Threaded Hosetails
EVO110 75,000 Litres
16,500 UK Gallons
19,815 US Gallons
25,000 Litres/hr
5,500 UK Gallons/hr
6,605 US Gallons/hr
110W
(2 x 55W T8)
2" No Fittings Supplied
