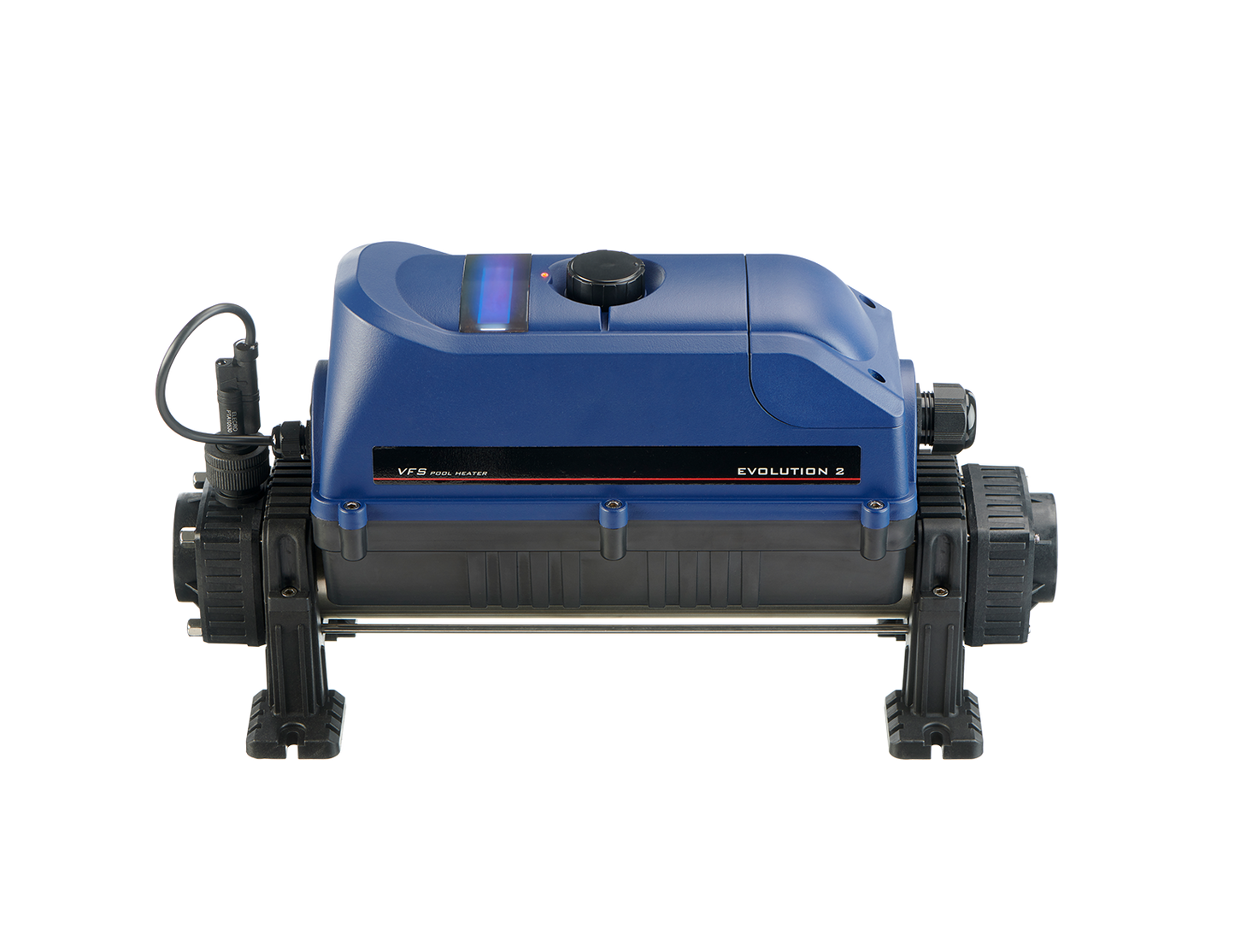

A fully titanium heater by Elecro, the Evolution 2, is the latest and upgraded version of the original Evolution. Boasting 100% efficiency, safety, and above all, reliability, this compact and robust unit will effortlessly heat your pool or spa to your desired temperature.
FEATURES & BENEFITSS
- Ten power options ranging from 1-kW to 24-kW
- Easy installation, fully equipped and pre-wired
- Robust, durable construction
- Ultra-reliable flow switch allows safe operation
- Temperature thermostat and overheating sensor
- Compact, durable design
- Analogue control with 1.2˚C differential or digital control with 0.5˚C differential and selectable multi-lingual display
- Titanium flow tube and titanium heating element
- Can be floor or vertically wall mounted
- Vortex, long life, stay clean heating element technology
- 100% efficiency throughout the product life
- Silent operation
TECHNICAL DATA
| Power Supply |
Single phase or three phase |
|---|---|
| Flow Requirements |
Minimum flow: 1-kW to 6-kW, 1m³/h |
| Heating Elements |
Grade 1 titanium |
| Flow Tube |
Grade 1 titanium |
| Control Thermostat |
Analogoue: 0>45°C (1.2°C differential) |
| Safety Thermal Cut Out |
60°C (manual reset) |
| Flow Switch |
Gold tipped reed switch with titanium fulcrum pin |
| Contactor |
Siemens 3RT2023 OR 3RT2027 |
| Seals |
High temperature special formula EPDM ferrules, TPE end fitting gaskets |
| Water Connection |
1.5” BSP female thread supplied with 1½” / 50mm stepped ABS unions for rigid pipe and 1½” / 1¼” stepped hose tails for flexible pipe |
| Ingress Protection Rating |
IP44 |
| Frequency |
50/60 Hz |
| Working Pressure |
4 bar maximum |
| Mounting |
Floor or wall mounting |
