Eazy Pod - Green
Eazy Pod - Green
SKU:FS320

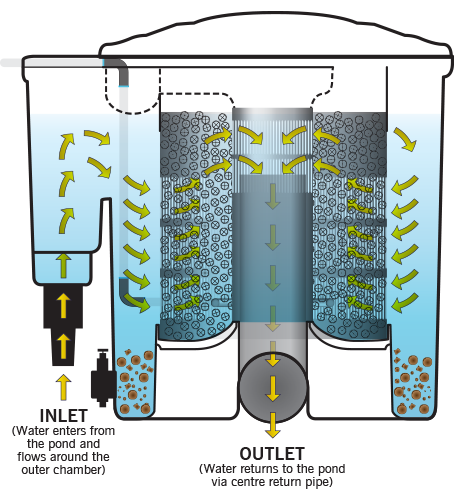

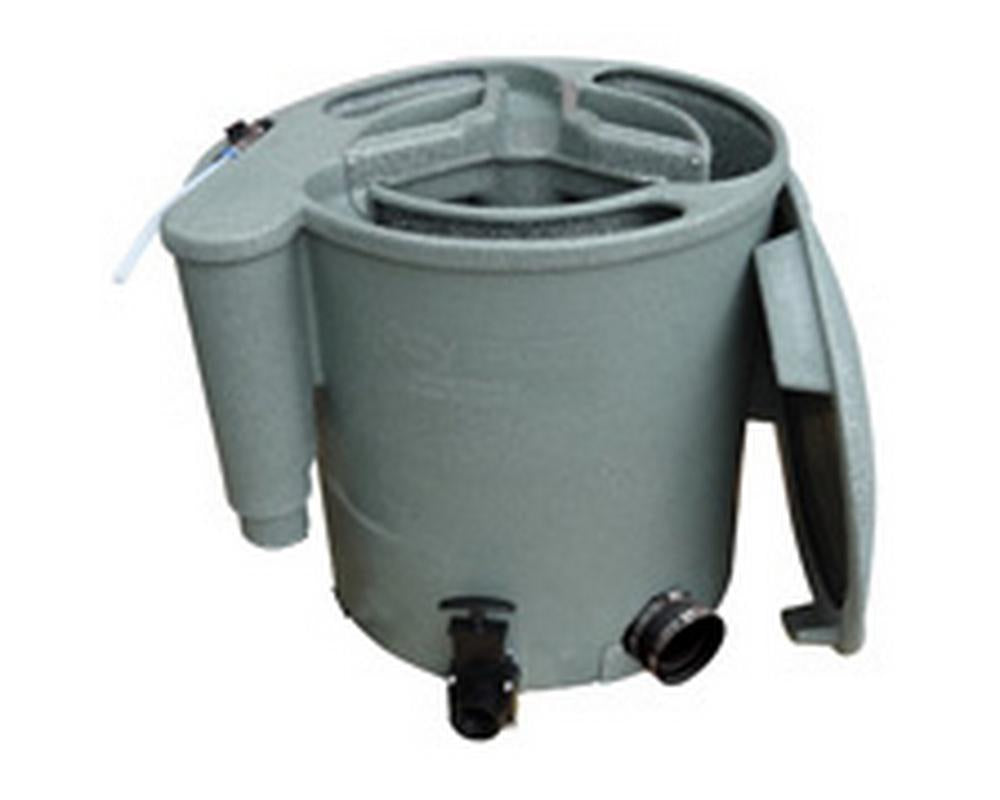

The EazyPod is a compact filtration system from the Nexus family, designed for use in small ponds up to 10,000 liters in size. The device employs a dual filtration process, which combines mechanical and biological filtration, by using 18 liters of static K1 Micro media. The product comes in two colors: grey and granite green. Water from the pond flows into the EazyPod through an inlet and is directed around the outer chamber, passing through a stainless steel grill that traps larger particles which settle at the bottom of the chamber. This is the first stage of mechanical filtration. As water then enters the central chamber, through the stainless steel grill, smaller particles are trapped in the K1 Micro media. Biological filtration occurs as bio-films develop on the surfaces within the media. The cleaned water then overflows into the inner return pipe and flows back to the pond through the outlet. The EazyPod is easy to clean and maintain, by agitating the K1 Micro media with an air pump during the cleaning cycle. A 70-liter-per-minute air pump is recommended for this task.
INSTALL EAZY POD:
PUMP-FED INSTALLATION:
By this we mean that if your pump is going to be used to supply the water to the filter, and the filtered water then returns back into your pond via gravity, i.e. down a waterfall, or through a large diameter pipe, this is referred to as PUMP FED (i.e. the water is fed to the filter using a pump).
GRAVITY-FED INSTALLATION:
*User modification is required on the EazyPod to enable Gravity Fed installation. By this we mean that your pump is going to be used to return the filtered water to the pond and therefore your filter will be supplied by gravity via a larger diameter pipe. In this situation the water level in the filter will be at the same level as the pond.
Technical Data:
Model | Max Pond Size Ornamental Fish | Max Pond Size with Koi | Max Feed Rate | Volume of water in filter | Recommended Flow rate | Recommended air pump | UV-C bulb |
10,000 Litres 2,200 Gallons 2,640 US gallons |
10,000 Litres 2,200 Gallons 2,640 US gallons |
100 - 125g Per Day | 80 Litres 18 Gallons 21 US Gallons |
5,000 Lph 1,100 Gph 1,320 US Gph |
Air Pump 70 Kit (Not supplied) | x | |
10,000 Litres 2,200 Gallons 2,640 US gallons |
10,000 Litres 2,200 Gallons 2,640 US gallons |
100 - 125g Per Day | 80 Litres 18 Gallons 21 US Gallons |
5,000 Lph 1,100 Gph 1,320 US Gph |
Air Pump 70 Kit (supplied) | x | |
10,000 Litres 2,200 Gallons 2,640 US gallons |
10,000 Litres 2,200 Gallons 2,640 US gallons |
100 - 125g Per Day | 80 Litres 18 Gallons 21 US Gallons |
5,000 Lph 1,100 Gph 1,320 US Gph |
Air Pump 70 Kit (supplied) | 18 W PL-L |
