Oase

Oase Bitron Premium 60 W

UV800
  • Sale
  • Regular price £836.97
Tax included.

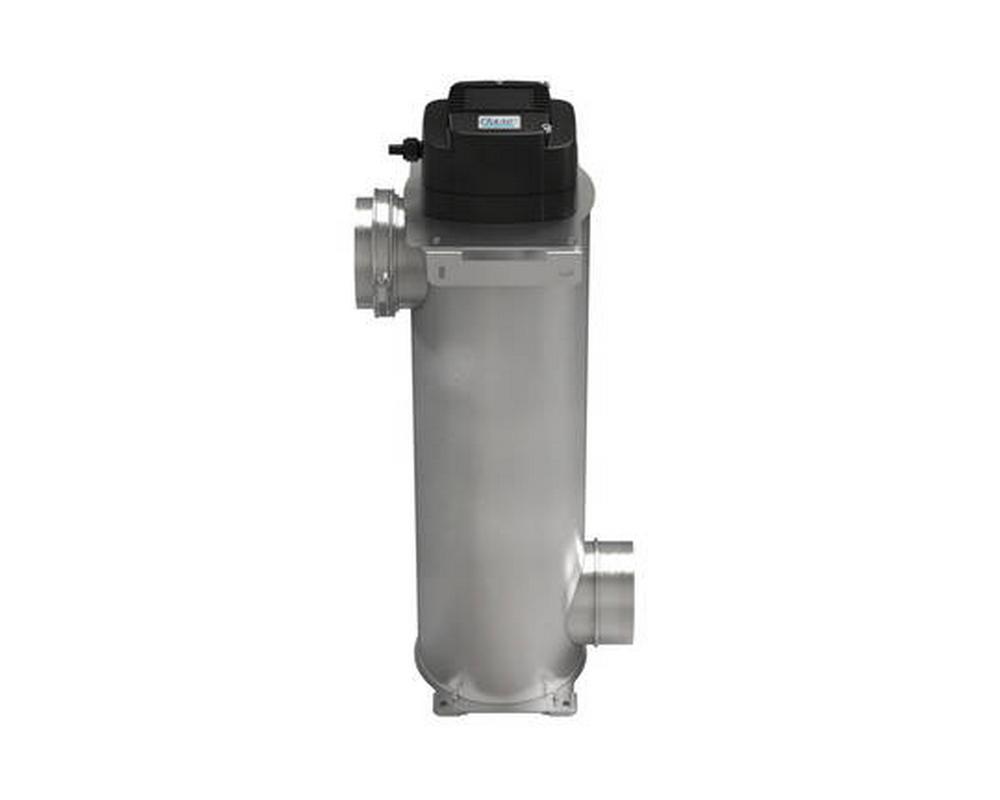

The highly efficient UVC clarifiers of the Bitron Premium series are suitable for ponds up to 90 m³ and stand for an extremely powerful removal of algae and pathogenic bacteria - in the same way as an immersion UVC. They offer 100% safety against eye damage Particularly energy-efficient thanks to an electronic ballast and extremely effective in disinfection thanks to the long retention time of the water in the Bitron. The flow-optimized reactor design ensures direct and almost loss-free UV radiation. A Bitron Premium can be connected very flexibly before or after the ProfiClear filter system - also in other gravitational applications. When the pond or fish population is enlarged, additional Bitron Premium UVC devices can be added at any time. also a horizontal or vertical installation. The Bitron Premium 120 W and 180 W lamps can be switched individually as required.

  • 100% protection against eye damage
  • Energy efficient thanks to electronic ballast
  • Exceptionally effective sterilisation thanks to the long retention time of the water in the Bitron
  • Flow-optimised reactor design ensures direct and virtually loss-free UV radiation
  • High-quality V4A stainless steel housing for stability and good reflection rates
  • Extremely easy installation with stainless steel connection elements
  • Flexible connection upstream or downstream of the ProfiClear filter system — as well as for other gravity-fed applications
  • In the event of pond enlargements or an increase in fish stock, extension with additional Bitron Premium UVC devices is possible at any time
  • Visual function check
  • Horizontal or vertical setup possible
  • Clear water guarantee when used in conjunction with OASE ProfiClear filters
  • Depending on requirements, the Bitron Premium 120 W and 180 W lamps can be switched on individually
  • Suitable for ponds up to 90.0 m3

Technical Data

Dimensions (L x W x H) mm 700 x 290 x 205
Rated voltage 220 - 240 V / 50/60 Hz
Power consumption W 60
Power cable length m 5.00
Net weight kg 7.80
Limited Warranty Years 2
UVC power W 60
UVC operating hours meter No
Function check Visual
Number of inlets Units 1
Inlet connections DN 110
Number of outlets Units 1
Outlet connections DN 110
Max. flow rate l/h 40000
Max. operating pressure bar 0.6
Rec. flow rate (gravity-fed) l/h 16500
Suitable for ponds up to max. m 3 90.0
Suitable for ponds with fish stock m 3 50.0
Suitable for ponds with koi m 3 33.0
Material Plastic / stainless steel
Connection to AquaMax, ProfiClear
Type of use Gravity fed system, Pump fed system
