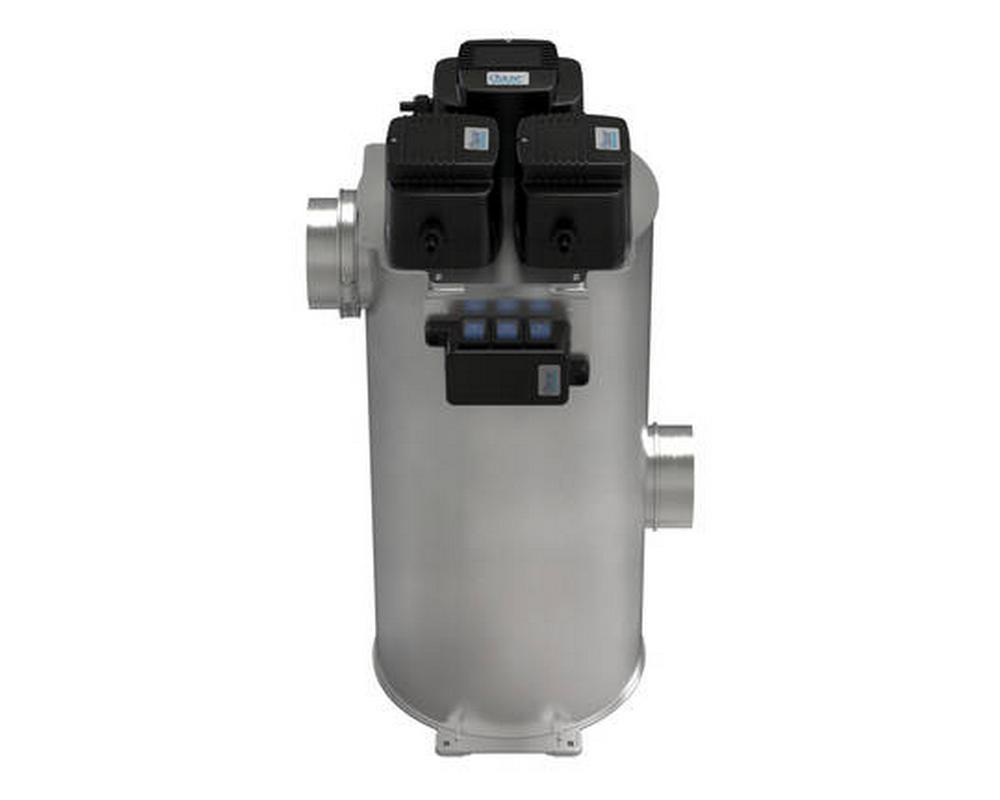

The highly efficient UVC clarifiers of the Bitron Premium series are suitable for ponds up to 280 m³ and stand for an extremely powerful removal of algae and pathogenic bacteria - in the same way as an immersion UVC. They offer 100% protection against eye damage, are particularly energy-efficient thanks to an electronic ballast and extremely effective in disinfection thanks to the long retention time of the water in the Bitron. The flow-optimized reactor design ensures direct and almost loss-free UV radiation.
- 100% protection against eye damage
- Energy efficient thanks to electronic ballast
- Exceptionally effective sterilisation thanks to the long retention time of the water in the Bitron
- Flow-optimised reactor design ensures direct and virtually loss-free UV radiation
- High-quality V4A stainless steel housing for stability and good reflection rates
- Extremely easy installation with stainless steel connection elements
- Flexible connection upstream or downstream of the ProfiClear filter system — as well as for other gravity-fed applications
- In the event of pond enlargements or an increase in fish stock, extension with additional Bitron Premium UVC devices is possible at any time
- Visual function check
- Horizontal or vertical setup possible
- Clear water guarantee when used in conjunction with OASE ProfiClear filters
- Depending on requirements, the Bitron Premium 120 W and 180 W lamps can be switched on individually
- Suitable for ponds up to 280.0 m3
Technical Data
Dimensions (L x W x H) | mm | 700 x 417 x 340 |
Rated voltage | 220 - 240 V / 50/60 Hz | |
Power consumption | W | 180 |
Power cable length | m | 7.00 |
Net weight | kg | 17.40 |
Limited Warranty | Years | 2 |
UVC power | W | 180 |
UVC operating hours meter | No | |
Function check | Visual | |
Number of inlets | Units | 1 |
Inlet connections | DN 110 | |
Number of outlets | Units | 1 |
Outlet connections | DN 110 | |
Max. flow rate | l/h | 100000 |
Max. operating pressure | bar | 0.6 |
Rec. flow rate (gravity-fed) | l/h | 50000 |
Suitable for ponds up to max. | m 3 | 280.0 |
Suitable for ponds with fish stock | m 3 | 160.0 |
Suitable for ponds with koi | m 3 | 100.0 |
Material | Plastic / stainless steel | |
Connection to | AquaMax, ProfiClear | |
Type of use | Gravity fed system, Pump fed system |
