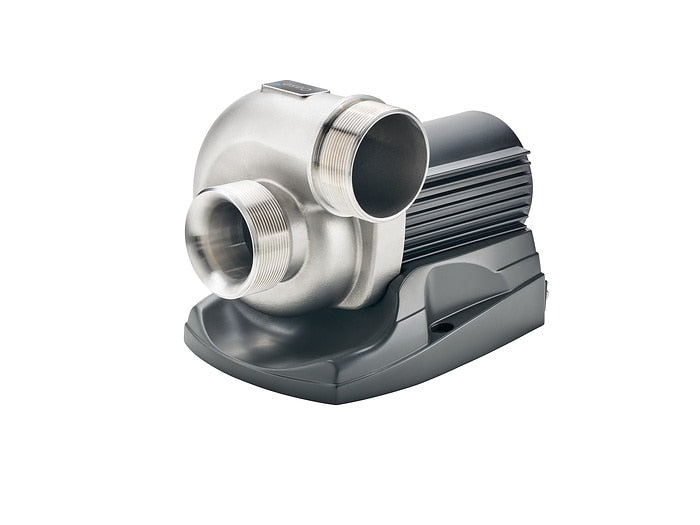

Energy-efficient gravity filter pump for large bodies of water, also with koi stock - perfect for gravity filter systems. Thanks to the flow-optimized hydraulics, the power pack achieves an outstanding level of efficiency (31,500 l / h delivery rate with a power consumption of only max. 170 W). With a robust pump housing made of cast stainless steel and a large base for secure placement. The high-quality SIC ceramic of the rotor shaft and the bearings stand for reliability and durability. The AquaMax Eco Titanium 31000 can be immersed and set up dry - also ideal in a pump chamber. It conveys coarse dirt with a grain size of up to 6 mm and is reliably protected against dry running and blockage thanks to "Environmental Flow Control" (EFC by OASE). The patented "Seasonal Flow Control" (SFC) as an intelligent and environmentally conscious regulation of the water volume and delivery height enables additional energy savings of up to 30% with the help of optional accessories and with the SFC function switched on - precise and reliable engineering "Made in Germany" at a particularly high level . Up to 5 years guarantee - 3 plus 2 years requirement guarantee.
- Innovative, energy-efficient gravity filter pump for large bodies of water, even with koi stock
- Flow-optimised hydraulics help to achieve an outstanding level of efficiency
- Robust pump housing made of cast stainless steel with large base for safe placement
- Rotor shaft and bearings made from high-quality SIC ceramics for optimal reliability and longevity
- Ideal for installation in a pump chamber
- Can be set up underwater & dry installed
- Protection against running dry and blocking through Environmental Function Control (EFC by OASE)
- Patented Seasonal Flow Control (SFC) for intelligent and environmentally conscious regulation of flow rate and pump head height
- Using optional accessories, when the SFC function is enabled, an extra 30% can be saved in energy
- MADE IN GERMANY: precise and reliable German engineering skills at a particularly high quality level
- System requirements: To use the EGC functions, an InScenio EGC Controller Home/Cloud, InScenio FM-Master EGC Home/Cloud, InScenio FM-Master WiFi EGC or InScenio FM-Master WiFi Version 2.0 or later is required
- Suitable for submersed or dry use – even in sea water
- Handles coarse debris particles up to 6 mm in size
Technical Data
| Dimensions (L x W x H) | mm | 275 x 175 x 200 |
|---|---|---|
| Rated voltage | 220 - 240 V / 50/60 Hz | |
| Power consumption | W | 35 - 170 |
| Power cable length | m | 10.00 |
| Net weight | kg | 9.20 |
| Guarantee (+ request guarantee) | Years | 3 + 2 |
| Max. flow rate | l/min | 525 |
| Max. flow rate | l/h | 31500 |
| Max. head height, metres | m | 3.30 |
| Pressure-side connection | mm | 75 |
| Pressure-side connection | G 2 ½" | |
| Suction-side connection | mm | 75 |
| Suction-side connection | G 2 ½" | |
| Max. coarse debris displacement | mm | 6 |
| Connection EGC | Yes | |
| Electronic adjustment | Yes | |
| Setup type | Can be set up underwater & dry installed |
