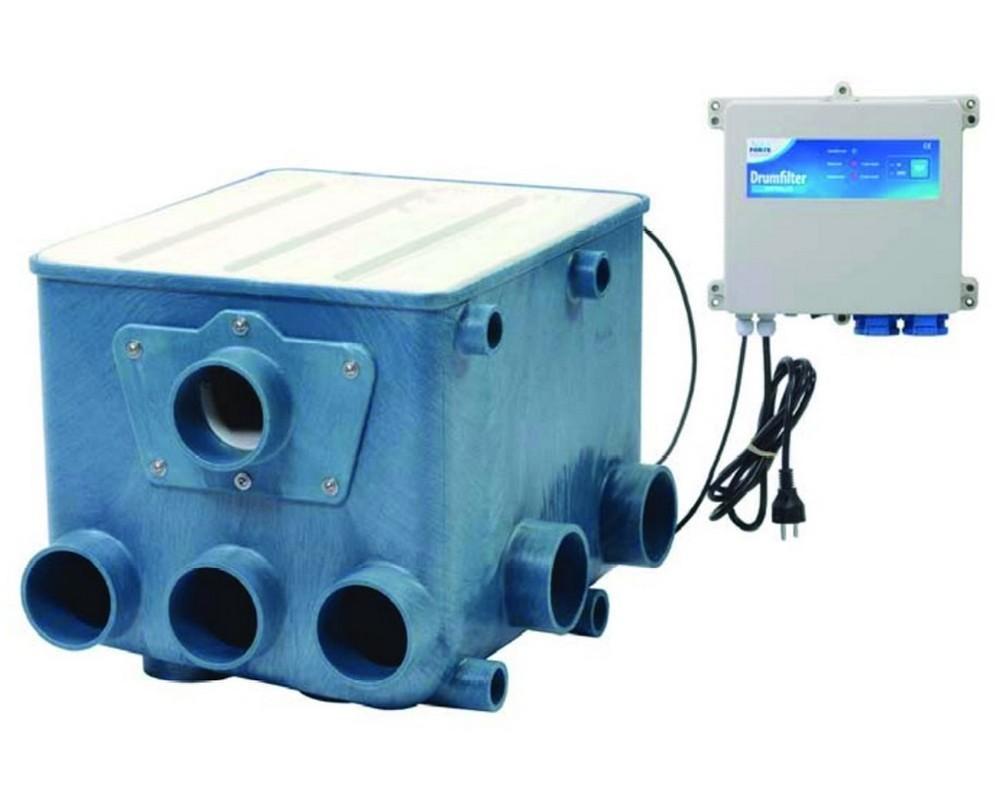

Aquaforte Drum Filter (inc control box and lid)

Aquaforte Drum Filter (inc control box and lid)

PF2001

£1,084.16 GBP
£1,084.16 GBP
Sale Sold out
Taxes included.



  • - Extra low installing height of only 10cm above the water level!

  • -Individual, exchangeable screen elements of 60 micron
  • -Controller with custom software operations including many safety options like motor slow start, motor amp protection, manual cleaning button, standard hourly cleaning, ect.
  • -Injection molded housing made of HDPE, white parts are made of POM (polyoxymethylene, a hard and strong polymer)
  • -48VDC Motor
  • -Suited for pump fed and gravity fed operation (inlet chamber and drum chamber are both fitted with a mounting bracket for the float switch). Float switch can easily be adjusted heightwise
  • -Centered position for a 40watt submersible amalgam lamp (just drill a hole for the tank connector at the centered spot)
  • -Only 1 cable from controller from controller to drum filter (this will divide into 3 cables:Motor, float switch and cover switch).
  • -Fitted with cover switch which cuts the power off to the motor, cleaning pump and UVC for safety.
