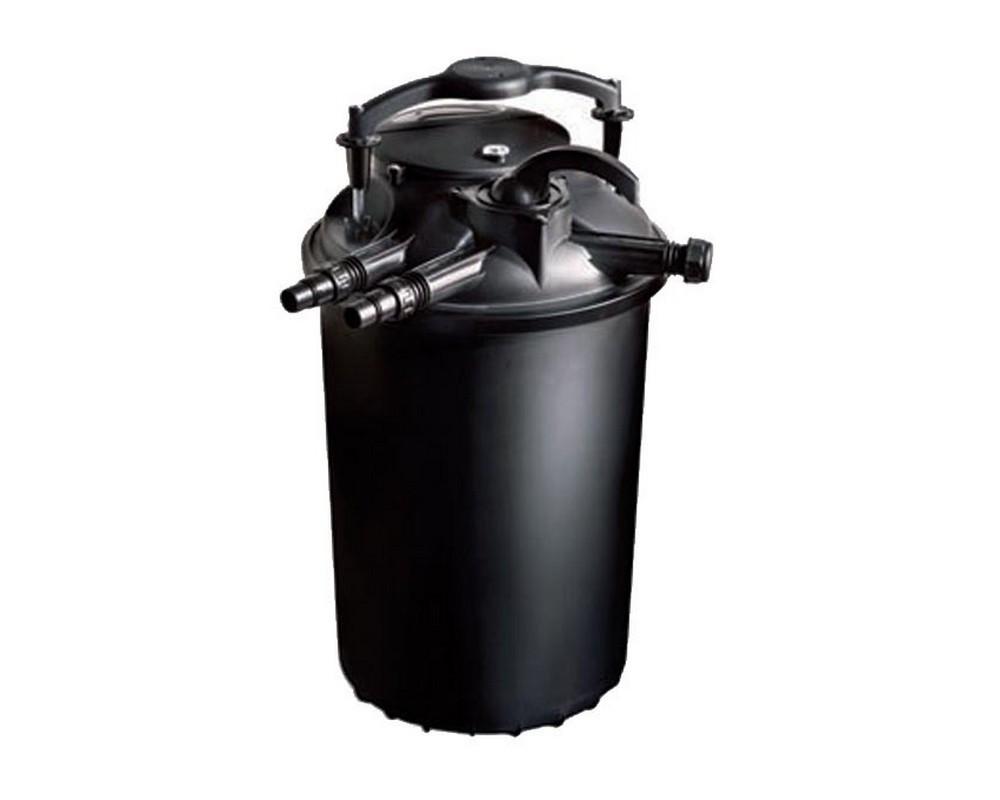

New compact pressure filters with a unique, patented, cleaning system! 3 stage cleaning: mechanical, biological and UV.
First the water is forced through the sponges (mechanical filtration) and then through the bioballs (biological filtration) in combination with an effective UVC sterilizer lamp to guarantee clear pond water. In the larger models (60&100), there is only biological filtration with filterfoam and not with bioballs. Cleaning: - lift the handle on the top of
the cover; 2 -turn the lateral grip handles in the cleaning position and turn the flow selector handle; 3 - push the big handle down to squeeze and clean the internal sponges (PATENTED MECHANISM). There is no need to open the filter, you can
clean it with clean and dry hands!
Max. pond size is based on small fish load. For ponds with high fish load you need to reduce the max. size with 50%. It can be placed next to the pond, above the pond water level or buried into the ground according to the need of the user.
Connections model 25/40: 1½" male threaded incl. hosetails 25/30mm.
Connections model 60/100: 2½" male threaded incl. hosetails 32/38/50 mm. Max. pressure 0,4 bar. 5 metre cable.
3 year warranty, (not on UV lamp and quartz glass).
|Q-Max||2 x 20 w uv-c lamp|
|Voltage / Hertz||230-240v / 50hz|
|ELAB10X||cable 3 m - schuko - 3p|
