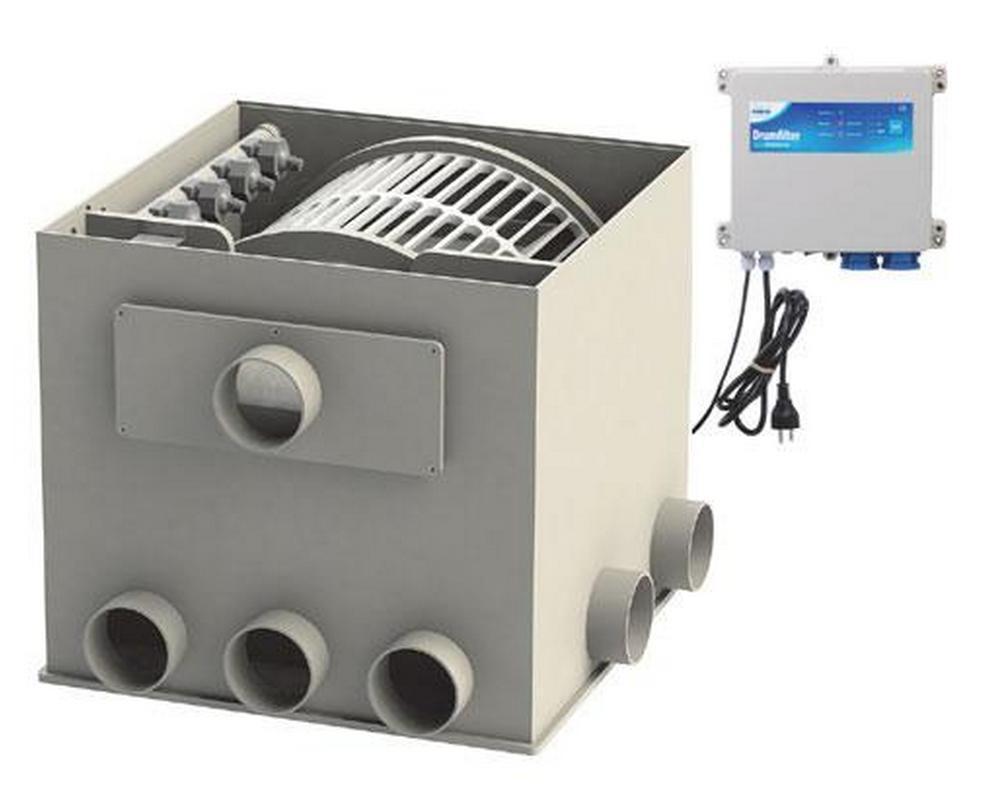

Aquaforte Drum Filter XL
The larger version of the popular ATF-1 drum filter. Made entirely of PP.
- Extra low installing height of only 10 cm above the water level!
- Individual, exchangeable, screen elements of 75 micron
- Max. flow 35m³/h.
- Controller with custom software operation including many safety options like motor slow start, motor
amp protection,manual cleaning button, standard hourly cleaning, etc.
- 48VDC motor
- Suited for pump fed and gravity fed operation (inlet chamber and drum chamber are both fitted with
a mounting bracker for the float switch). Float switch can be easily adjusted in height.
- Equipped with overflow protection.
- 3 x Ø110mm inlet, 2 x Ø110mm outlet
- Only 1 cable from controller to drumfilter (this will divide into 3 cables: motor, float switch and cover
- Fitted with cover switch (cuts the power off to the motor, cleaning pump and UV-C unit for safety).
- Size housing (L x W x H): 62 x 62 x 55 cm.
